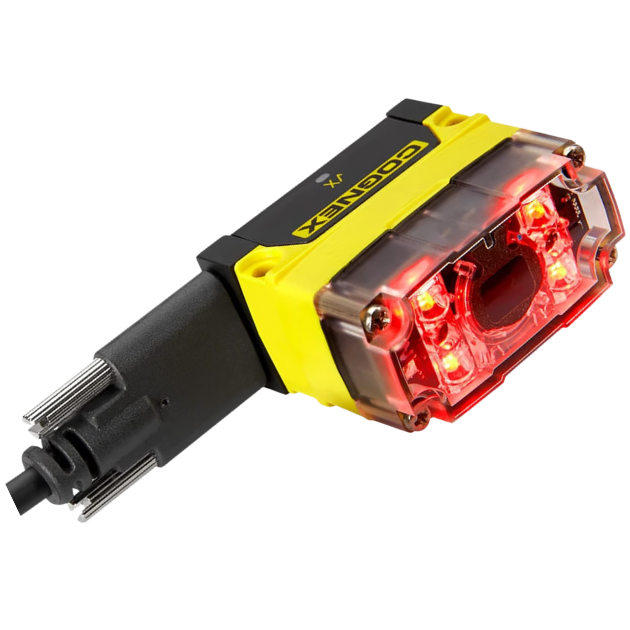

Barcode Reader – DataMan 70
The DataMan 70 is a high-performance fixed barcode reader, ideal for high-speed manufacturing and logistics lines.
Advanced imaging technology enables accurate reading of 1D/2D codes even when they are blurred, damaged, or distorted, ensuring stable and reliable operational performance.
Detailed information
The DataMan 70 is a fixed barcode reader designed to read 1D and 2D label codes at the highest speeds. Leveraging advanced imaging technology and a compact form factor, the DataMan 70 is an ideal solution for high-speed manufacturing lines or logistics applications that require precise item positioning.
FEATURES OF DATAMAN 70
- Accurate 1D and 2D code reading: Equipped with industry-leading barcode decoding algorithms, the DataMan 70 Series accurately reads 1D and 2D label codes even when they are blurred, damaged, low-contrast, have quiet zone violations, or are distorted due to viewing angles
- Compact design, easy installation: The DataMan 70 Series features a compact form factor ideal for space-constrained applications, with an IP65-rated housing suitable for harsh industrial environments. Optional communication modules allow multiple readers to be daisy-chained, enabling fast and convenient cabling
- Advanced imaging technology: Flexible configuration options combined with powerful LED lighting and optics deliver bright, high-contrast images, supporting both near and far code reading with adjustable focus. This makes the DataMan 70 suitable for both low-speed and high-speed applications
TECHNICAL SPECIFICATIONS OF DATAMAN 70
| 72 S | 72 L | 72 QL | 72 Q | |
| 1D and stacked codes | ■ | ■ | ■ | ■ |
| Omnidirectional 1D code reading | ■ | ■ | ■ | |
| 2D label codes | ■ | ■ | ||
| Resolution | 752 x 480 pixel | 1280 x 960 pixel | 1280 x 960 pixel | 1280 x 960 pixel |
| Image Sensor | 1/3″ CMOS | |||
| Sampling rate | 2 fps | 60 fps | ||
| Maximum decoding speed | 2 code/sec | 45 code/sec | ||
| Aiming light | 2 green LED light | |||

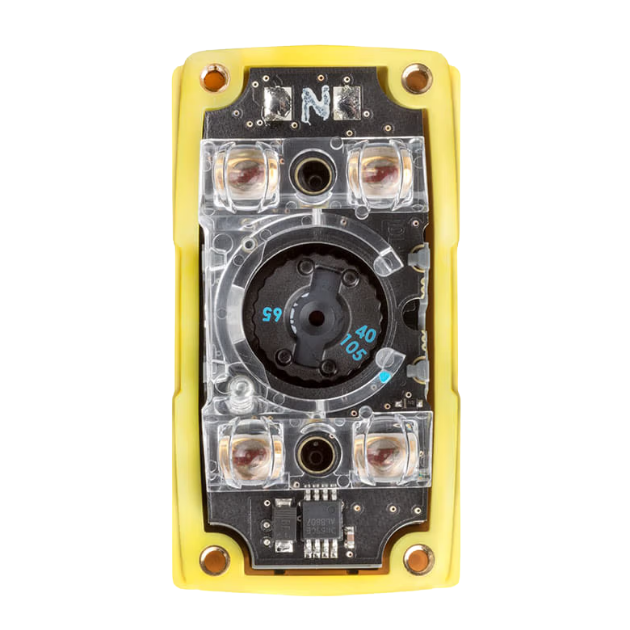

| Lens | 6.2 mm f/7.0, three positions with standard or long focal length; or 16 mm f/7.0 manual focus | |||
| Illumination system | 4 independently controlled red LEDs (6.2 mm lens) or 4 high-power LEDs (16 mm lens only) | |||
| Power Supply | 5–24 VDC or USB-powered, 2.5 W | |||
| Communication Protocols | Integrated USB-C (RS-232 via adapter cable) or industrial Ethernet protocols via communication module | |||
| Size | 42.4 x 22.2 x 38.7 mm | |||
| Weight | 42 g (No cable) | |||
| Operating Temperature | 0–40 °C | |||
| Storage Temperature | 10–60 °C | |||
| Humidity | <95%, Non-condensing | |||
| Ingress Protection | IP65 | |||
| RoHS Certificate | Yes | |||
| (CE, Safety, FCC) Certificate | Yes | |||
| Compliance | IEC 61340-5-1:2016 | |||
| Supported operating systems | Windows® 7 and 10 | |||
