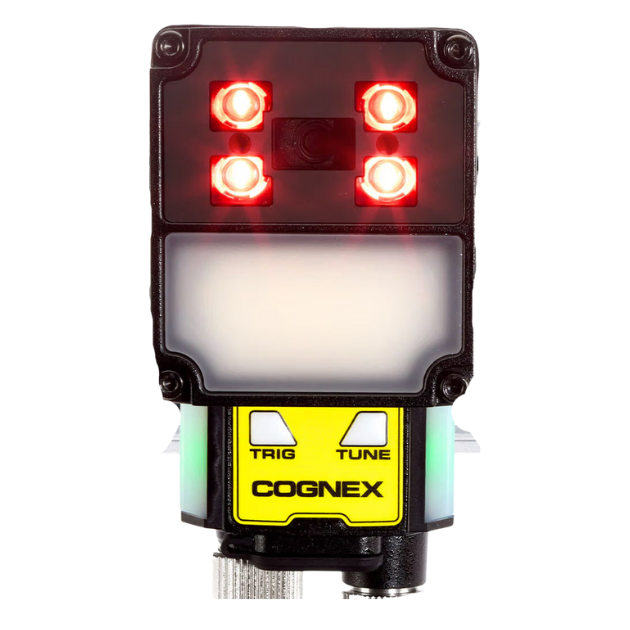

DataMan 290 – Barcode Reader
The DataMan 290 integrates AI technology to deliver fast, accurate, and reliable reading of 1D/2D and DPM codes across a wide variety of surfaces.
With an optimized design, automatic tuning, and easy integration, the device streamlines data traceability processes and boosts production efficiency.
The DataMan 290 is an AI-powered barcode reader that delivers accurate and consistent code reading in any environment, thanks to advanced algorithms and a powerful integrated illumination system. Its intuitive setup and automatic tuning features enable easy, efficient automation of barcode reading processes, making it suitable for a wide range of industries and applications.
Key Features of DataMan 290
The DataMan 290 leverages AI-based decoding technology to enhance accuracy and traceability across the entire production process. The device supports:
- Reading 1D and 2D barcodes across a wide range of symbologies and surface types
- Direct Part Marking (DPM) decoding, including hard-to-read dot-peen marks
- Simultaneous multi-code reading, increasing throughput and productivity
- Multi-reader synchronization, ideal for complex barcode scanning applications or large-area coverage
Technical Specifications of DataMan 290
| DataMan 290 | |
| Image Sensor | 1/3-inch CMOS sensor, global shutter |
| Resolution | 1440 x 1080 pixel |
| Lens | 6.2 mm or 16 mm High-Speed Liquid Lens |
| Electronic Shutter Speed | Minimum 43 μs / Maximum 200 ms (with external illumination) |
| Shutter Speed | Maximum 45 Hz |
| Illumination System | Integrated multi-purpose illumination (4 red LEDs + 1 diffused white LED) / Mini Light (4 high-power red LEDs) / Cover options: polarized, semi-polarized, transparent |
| Status Display | 5 LEDs, audible beeper, and 2 visual indicator lights |
| Power Supply | 24 V DC ± 10% |
| Power Consumption | ≤ 7,5 W |
| Weight | 214 g / 234 g / 194 g / 169 g (depending on illumination and lens configuration) |
| Operating Temperature | 0 – 70 °C |
| Storage Temperature | -10 – 60 °C |
| Humidity | <95%, Non-condensing |
| Communication Protocols | Serial, Ethernet, USB-C, connected to keyboard |
| Ethernet | 10/100 BASE-T |
| RS-232 Certificate | Compliant with TIA/EIA-232-F standard |
| Supported Protocols | TCP/IP, PROFINET, EtherNet/IP, Modbus TCP, … |
| RoHS Certificate | Yes |
| Standard | CE, CB, NRTL, KCC, TÜV, BIS |
