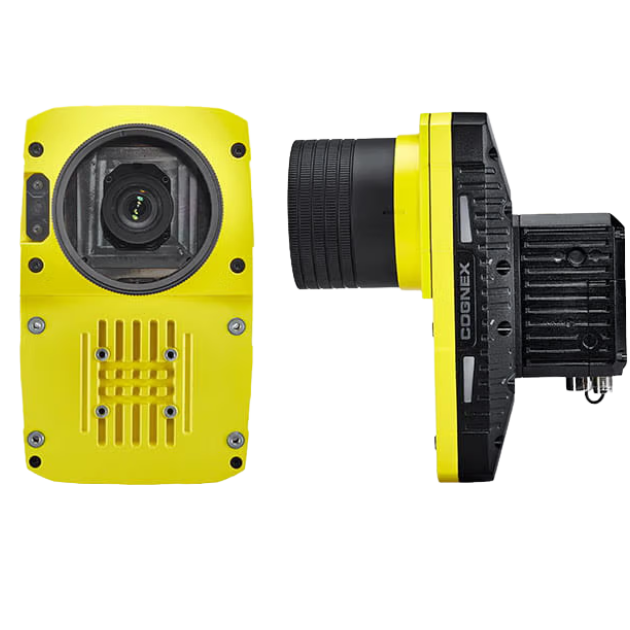

DataMan 580 – Barcode Reader
The DataMan 580 is a high-performance industrial barcode reader designed for high-speed production lines, delivering accurate reading of multiple code types on fast-moving packages.
When combined with the Cognex Modular Vision Tunnel, it enhances throughput, improves traceability accuracy, and optimizes overall operational efficiency.
The DataMan 580 is an industrial barcode reader designed for high-speed production and sorting lines. When integrated with the Cognex Modular Vision Tunnel, the DataMan 580 accurately reads multiple code types on fast-moving packages, even with very small gaps between products, helping to increase throughput and overall accuracy.
FEATURES OF DATAMAN 580
- Read more symbologies, faster: Advanced decoding algorithms optimized for multi-code and multi-symbology labels enable faster and more reliable reading
- Increase throughput: The device delivers fast and accurate reading even when products move closely together on the conveyor
- Improve traceability and compliance: Real-time verification of label size and position enhances traceability and supports ongoing supplier compliance assessment
- Simplify system integration: Easy-to-use setup and maintenance tools are designed specifically for multi-reader systems, reducing integration complexity
TECHNICAL SPECIFICATIONS
|
DataMan 580 Technical Specifications |
|
| Image Sensor | CMOS 2/3″ |
| Resolution | 4096 x 2160 pixel |
| Electronic shutter speed | Minimum: 29 μs |
| Maximum exposure time | 10 ms (with integrated light) / 400 ms (with external light) |
| Frame rate | Up to 38 Hz |
| Lens | 16 mm f/6, 25 mm f/6.5, 35 mm f/6 (manual focus or high-speed liquid lens) |
| Status indicators | 5 status LEDs, audible buzzer |
| Communication Protocols | Serial, Dual Ethernet, CogLink |
| Supported protocols | RS-232, TCP/IP, PROFINET, EtherNet/IP™, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, CC-Link, Java Scripting (customizable protocol) |
| Power Supply | 24V ± 10%, support PoE Class 3 |
| Power consumption | < 15W (no light) / < 40W (external light, Peak current < 2 A) |
| Material | Zinc/aluminum alloy |
| Weight | 1780 g |
| Operating Temperature | 0 – 40°C (32–104°F) |
| Storage Temperature | -10 – 60°C (14–140°F) |
| RoHS Certificate | Yes |
| Standard | CE, FCC, TUV, CB, NRTL, IEC 61010, KCC, BIS |
