3D Sorting – Three-Dimensional Spatial Sorting System

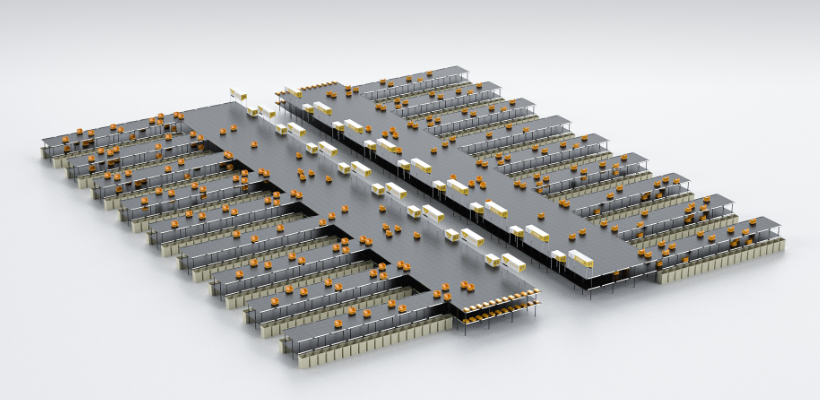

Overview of the 3D Sorting System

3D Sorting Solutions transform conventional 2D (planar) sorting into a 3D spatial sorting model, dramatically increasing the number of sorting destinations within the same floor area. This enables logistics centers to efficiently handle ultra-high-volume sorting operations in modern, automated environments.

The solution includes sorting platforms, 3D sorting machines, sorting robots, and conveyor systems, allowing for flexible deployment, unlimited scalability, and full optimization of operational space in modern logistics facilities.

Key Advantages of the 3D Sorting Solution

1. Exceptional Space Optimization

3D Sorting Solutions deliver clear advantages in space utilization:

• Use only one-third of the floor space compared to traditional sorting systems
• Unlimited sorting destinations, scalable from 20 to 10,000 destinations
• Ideal for high-density sorting centers with multiple outbound lanes

2. High Performance and Sorting Accuracy

Libiao’s 3D Sorting System is engineered for ultra-high-throughput logistics environments:

• Achieves up to 99.9% sorting accuracy
• Ensures stable, continuous operation even at very high sorting volumes
• Effectively supports large-scale, multi-SKU logistics and distribution models

3. Fast and Flexible Deployment

Compared to traditional systems, 3D Sorting Solutions offer a significant advantage in deployment speed:

• Easy installation, relocation, and expansion
• Can be commissioned and put into operation within just a few hours
• Significantly reduce deployment time compared to solutions that require weeks or even months to implement

4. Smart Operation with Advanced Automation

The solution leverages advanced robotic coordination technology:

• Simultaneous orchestration of hundreds to thousands of robots
• RCS control system ensures optimal routing, high system stability, and low error rates
• Only one operator per workstation, significantly reducing labor requirements

5. High Return on Investment (ROI)

This system provide a strong return on investment for modern logistics operations:

• Require low upfront investment and support flexible, volume-based expansion
• Enable fast implementation, allowing businesses to realize operational benefits quickly
• Achieve a short payback period of only 1–2 years, maximizing long-term ROI

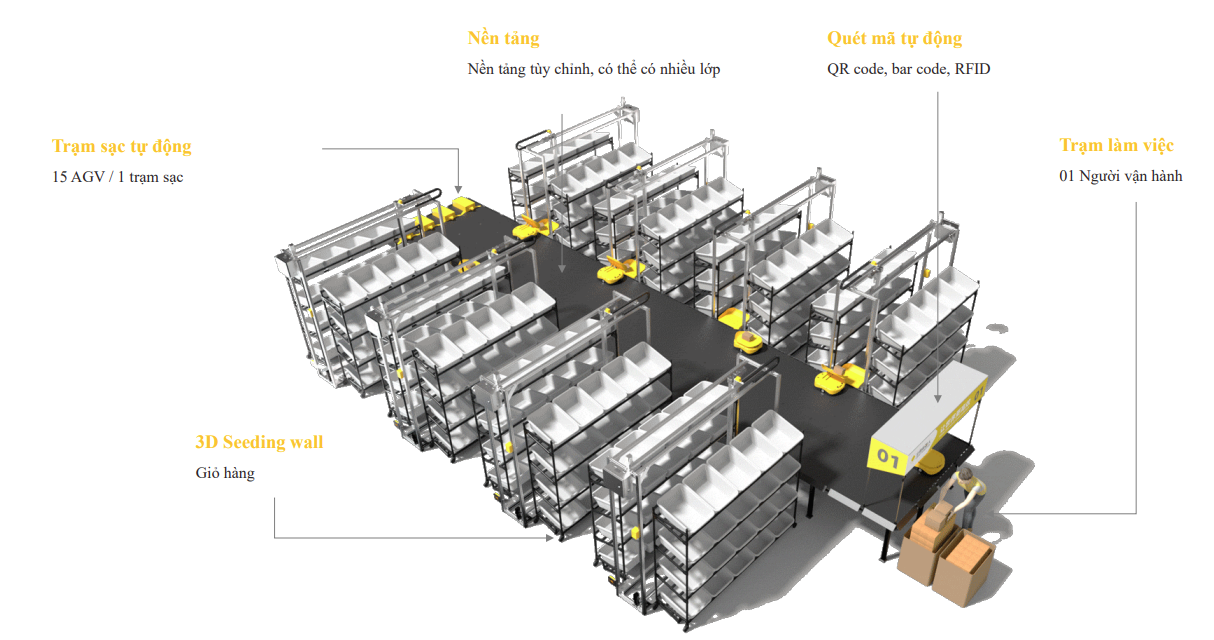

System Configuration

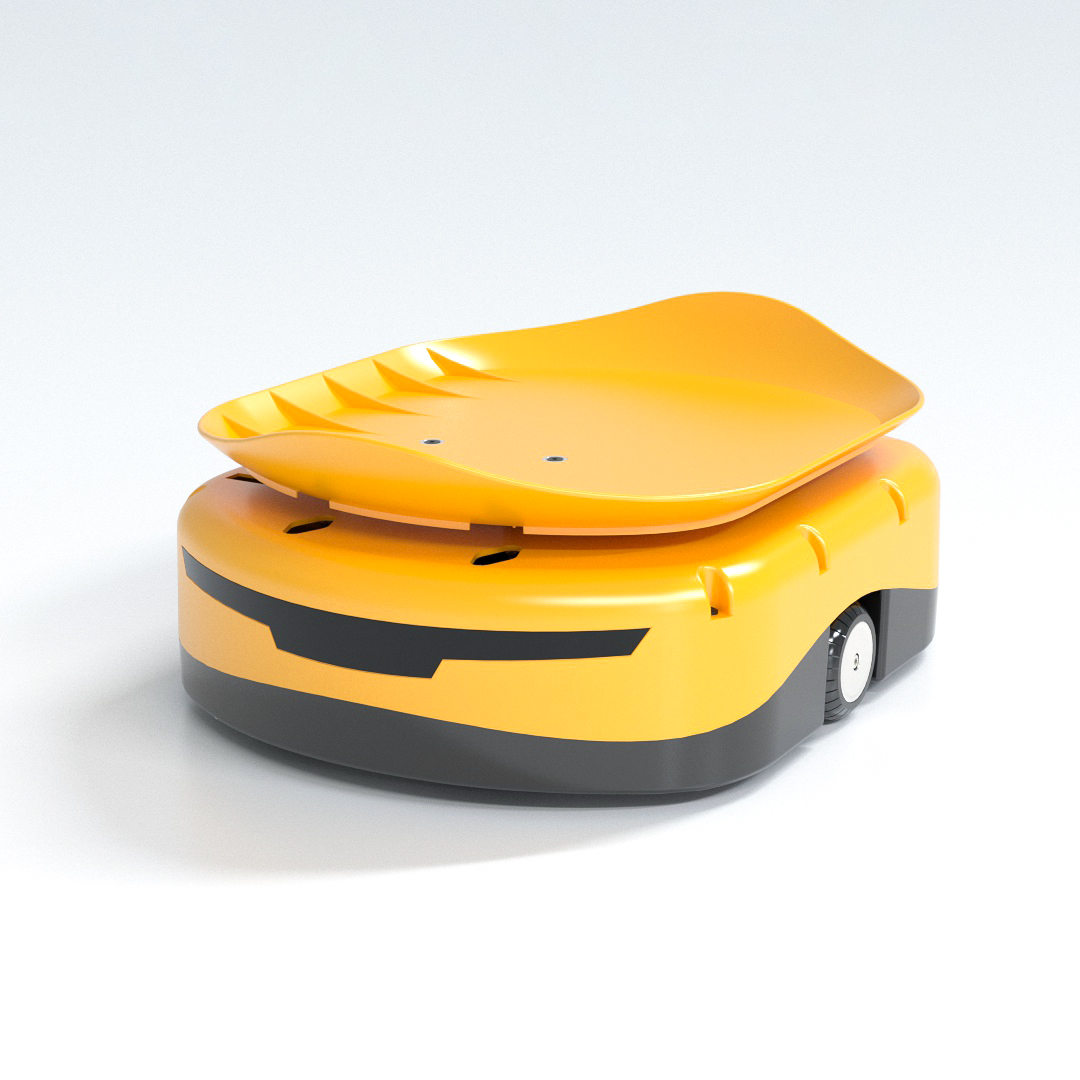

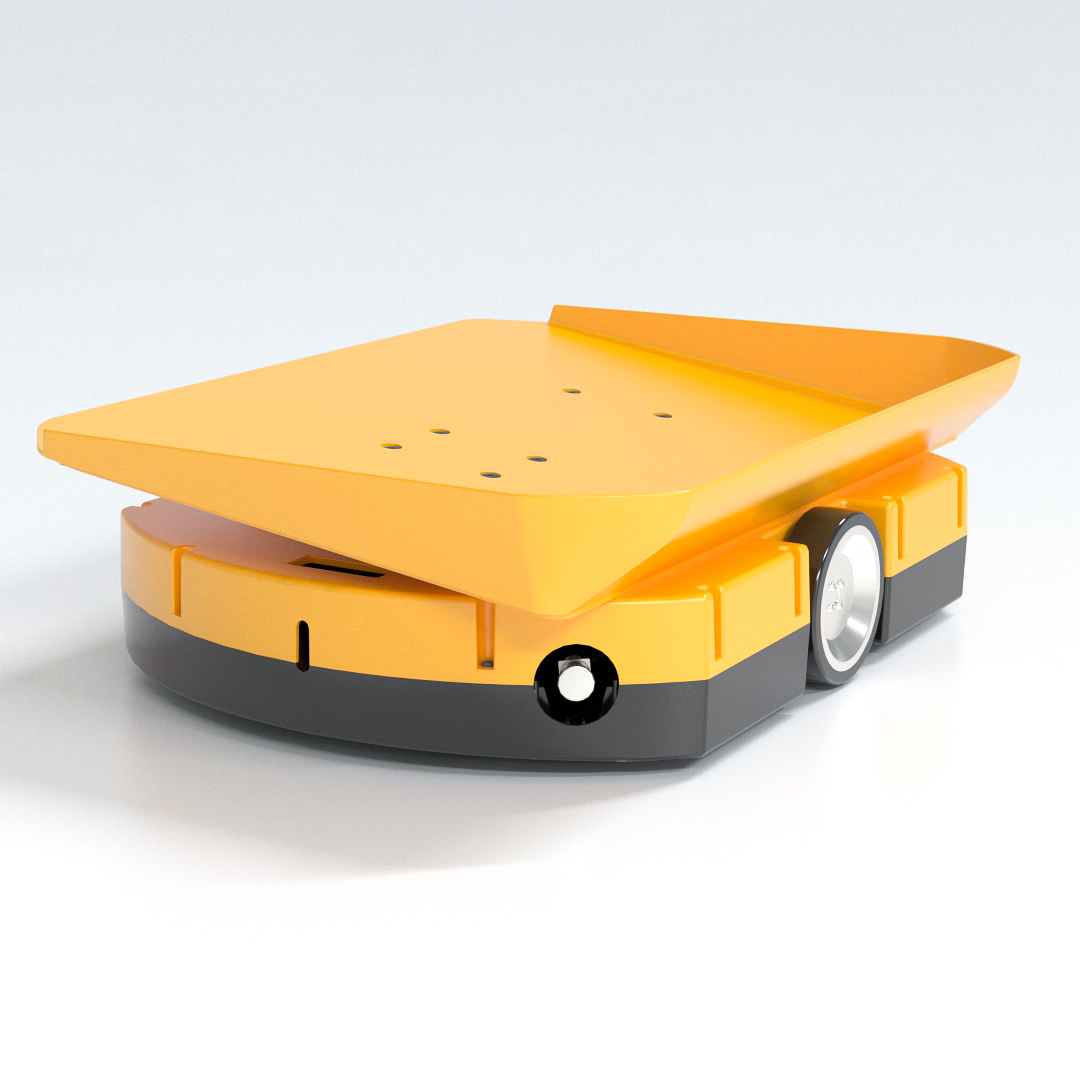

• Sorting Robots: Mini Bot / Standard Bot / Heavy Bot
• 3D Seeding Wall & totes
• Barcode scanning stations, workstations, and automatic charging stations
• RCS (Robot Control System) for intelligent robot management and coordination

Applications

3D Sorting are effectively applied across a wide range of industries and scenarios:

• Large-scale sorting centers
• E-commerce and 3PL (Third-Party Logistics)
• Postal and express delivery services
• High-throughput, multi-SKU warehouses

3D Sorting are a high-performance, space-saving, and infinitely scalable sorting solution—ideal for modern logistics centers pursuing full automation. The solution enables businesses to handle large volumes with high accuracy, optimize operational costs, and seamlessly scale to meet future growth demands.
