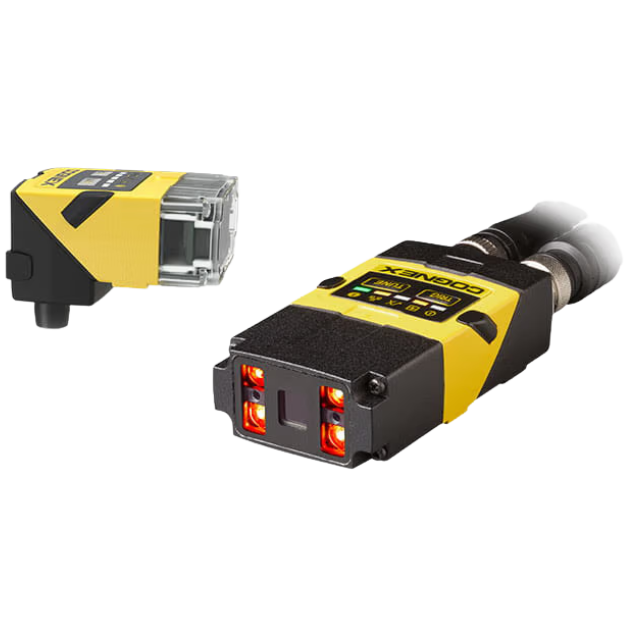

Barcode Reader – DataMan 150/260 Series

DataMan 150/260 is a fixed-mount barcode reader that utilizes advanced imaging technology to accurately read 1D, high-density 2D, and DPM codes on a wide range of surfaces.

With a flexible design offering straight and right-angle options, the device is easy to install in space-constrained environments while delivering exceptional decoding performance powered by Cognex’s high-performance processor and advanced algorithms.

Detailed information

The DataMan 150/260 series is a fixed-mount barcode reader based on image-based technology, designed to read 1D codes, high-density 2D codes, and Direct Part Marking (DPM). The device delivers outstanding reading performance, offers high flexibility across a wide range of applications, and is easy to deploy on production lines.

Đầu Đọc Mã Vạch – DataMan 150/260

Features of DataMan 150/260

Exceptional Read Rates: The DataMan 150/260 fixed-mount barcode readers deliver industry-leading read rates thanks to a powerful dual-core processor. Utilizing Cognex’s advanced 1DMax with Hotbars and 2DMax with PowerGrid algorithms, they accurately decode damaged, blurred, poorly printed, or low-quality 1D/2D codes on a wide variety of surfaces—including 2D codes without quiet zones or borders

Đầu Đọc Mã Vạch – DataMan 150/260

Easy Installation in Confined Spaces: DataMan 150/260 models are available in straight and right-angle configurations, making them easy to integrate into tight or space-constrained areas on production lines. The choice of inline or 90° mounting eliminates the need for mechanical redesigns, complex cable routing, or the use of mirrors to redirect the optical path

Đầu Đọc Mã Vạch – DataMan 150/260

Reduced Installation Time and Total Cost of Ownership: The modular optics and lighting design of the DataMan 150/260 readers allows lenses and illumination to be replaced directly on the production line. This shortens installation time, optimizes performance, and makes it easy to adapt to changes in the manufacturing process

Đầu Đọc Mã Vạch – DataMan 150/260

TECHNICAL SPECIFICATIONS

Technical Specifications – DataMan 260 Series Barcode Reader
	260 S	260 QL	260 Q	260 X	262 S	262 QL	262 Q	262 X
Supports 1D and Stacked Codes	✔	✔	✔	✔	✔	✔	✔	✔
Omnidirectional 1D Codes	✔	✔	✔	✔	✔	✔	✔	✔
Supports 2D Codes	✔		✔	✔	✔		✔	✔
Resolution	752 × 480				1280 × 960
Acquisition Speed	2 fps	60 fps			2 fps	45 fps
Decoding Speed	2 code/sec	45 code/sec			2 code/sec	45 code/sec
Lens	6.2 mm (3-position focus or liquid lens, 40–200 mm) 16 mm (manual focus or liquid lens, 80 mm – 1 m)
Illumination System	High-power LED illumination with independent control (Red, White, Blue, IR); supports polarizing filters and narrow bandpass filters
Communication Protocols	RS-232 và Ethernet
Size	Vertical: 42.5 × 22 × 76.1 mm Right-angle: 42.5 × 48.5 × 49.6 mm
Standard	IEC 61340-5-1:2016

Technical Specifications – DataMan 150 Series Barcode Reader
	150 S	150 QL	150 Q	150 X	152 S	152 QL	152 Q	152 X
Supports 1D and Stacked Codes	✔	✔	✔	✔	✔	✔	✔	✔
Omnidirectional 1D Codes	✔	✔	✔	✔	✔	✔	✔	✔
Supports 2D Codes	✔		✔	✔	✔		✔	✔
Resolution	752 × 480				1280 × 960
Acquisition Speed	2 fps	60 fps			2 fps	45 fps
Decoding Speed	2 code/sec	45 code/sec			2 code/sec	45 code/sec
Lens	6.2 mm (3-position focus or liquid lens, 40–200 mm) 16 mm (manual focus or liquid lens, 80 mm – 1 m)
Illumination System	High-power LED illumination with independent control (Red, White, Blue, IR); supports polarizing filters and narrow bandpass filters
Communication Protocols	RS-232 và USB
Size	Vertical: 42.5 × 22 × 55(63) mm Right-angle: 42.5 × 28(36) × 49.6 mm
Standard	IEC 61340-5-1:2016
