Chain Conveyor – PM 9720

GENERAL INFORMATION

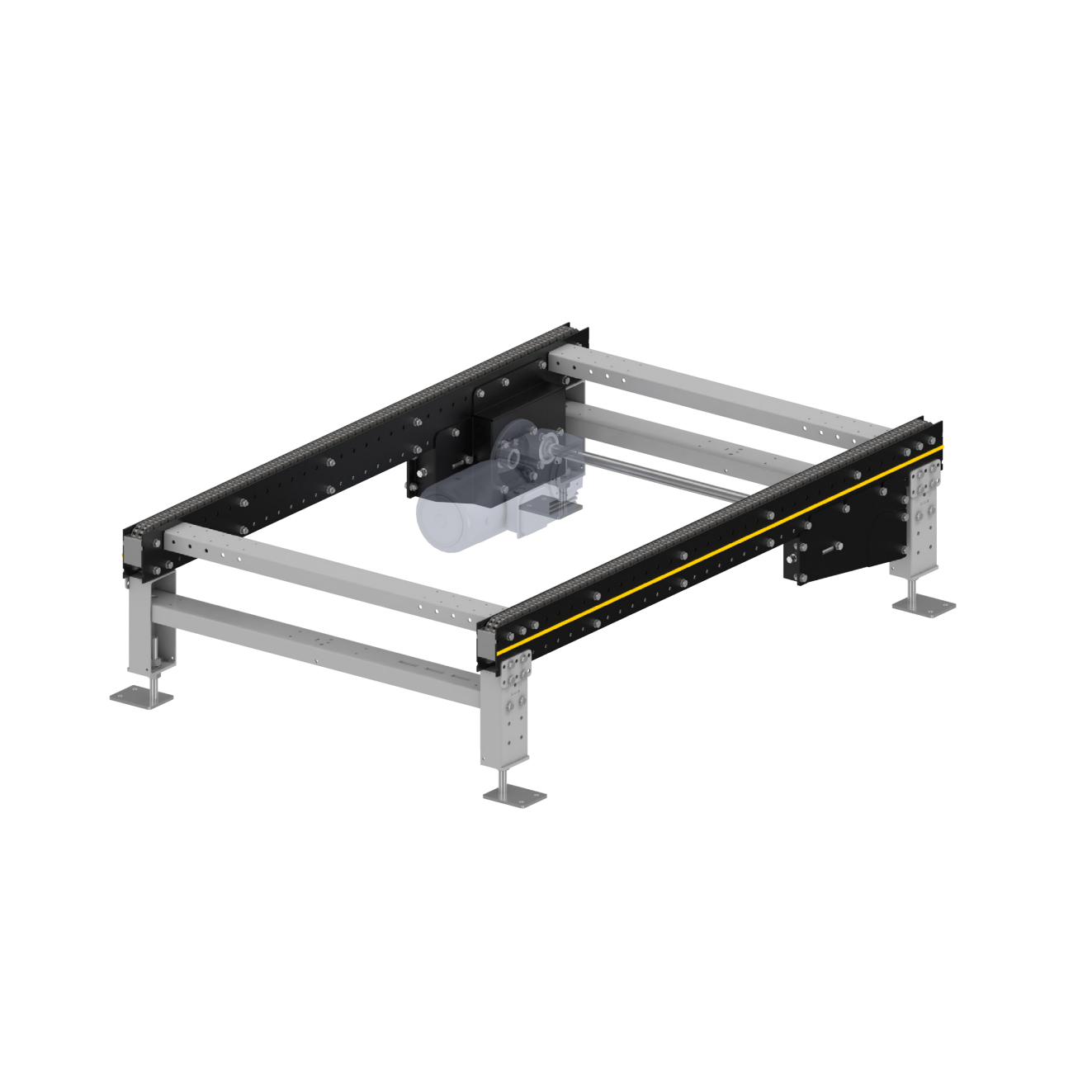

The PM 9720 chain conveyor is designed for horizontal pallet transportation.

Each chain strand uses a precision duplex roller chain with straight links as the load-carrying chain. The chains are guided within plastic guide channels. An integrated chain tensioning station with a 180° wrap angle allows easy and efficient chain tension adjustment.

The drive unit is positioned between the chain strands. Height-adjustable support legs enable flexible installation and compatibility with various floor types.

TECHNICAL SPECIFICATIONS OF PM 9720F

• Maximum load capacity: 1,875 kg/m or 3,000 kg per drive unit
• Conveyor speed: 0.1 to 0.5 m/s
• Ambient temperature: +5 °C to +45 °C (non-condensing), optional for cold storage environments upon request
• Incline/gradient: Up to 4% (applicable only with specific motor types)
• Number of chains: 2 or 3

Drive Unit

• Rated voltage: 400 V
• Motor type: Gear motor
• Power output: 0.37 to 3.0 kW
• Roller chain: 5/8″ × 3/8″, duplex type with straight connecting links

Support Frame

• Dimensions: 127 × 62 × 4 mm
• Finish: Powder-coated, primary color RAL 9005 (black) with accent color RAL 1023 (yellow)
• Material: Steel

MODEL DIMENSIONS

• Model width (TW): 1,012, 1,137 mm
• Chain spacing (CS): 950, 1,075 mm
• Conveyor height (TOC): 350 to 1,200 mm
• Model length (ML): 1,000 to 5,600 mm
