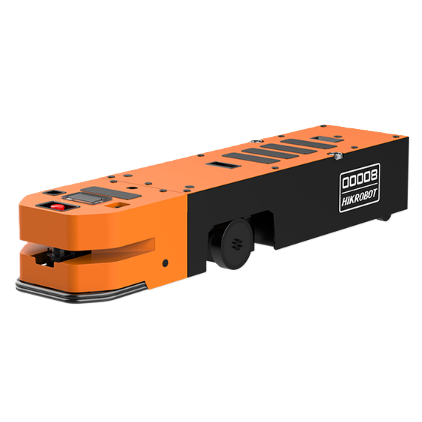

CT5-500L Autonomous Towing Vehicle (CMR)
The CT5-500L is a smart underride towing robot with a compact design, ideal for narrow and confined spaces. With a payload capacity of up to 500 kg and agile turning capability, the CT5-500L is an optimal choice for automated manufacturing plants requiring fast and precise material transport. It supports QR Code, L-SLAM, and V-SLAM navigation and features a modern touchscreen HMI.
The CT5-500L autonomous towing vehicle is a smart underride towing robot with a compact design, ideal for narrow and space-constrained environments. With a payload capacity of up to 500 kg and highly agile turning capability, the CT5-500L is an optimal solution for automated manufacturing facilities that require fast, accurate, and efficient material transport. The robot supports QR Code, L-SLAM, and V-SLAM navigation and is equipped with a modern touchscreen HMI.
Practical Applications
- Towing multiple carts simultaneously with a single AMR
- Automatic hitching within production lines
- Battery assembly and battery packaging lines
- Automotive assembly lines, including interiors, lighting systems, dashboards, and more
Technical Specifications
| Specification | Value |
| Dimensions (L × W × H) (mm) | 1615 × 360 × 285 |
| Turning Radius (mm) | 1000 |
| Ground Clearance (mm) | 30 |
| Weight (kg) | 175 |
| Rated Load (kg) | 500 |
| Navigation | QR Code / L-SLAM / V-SLAM |
| HMI Interface | Touchscreen Display |
| Pin Lifting Speed (mm/s) | ≥ 20 |
| Pin Stroke (mm) | 50 |
| Rated Travel Speed (mm/s) | 1000 |
| Rated Acceleration (mm/s²) | 500 |
| Positioning Accuracy (mm) | ±10 / ±1 |
| Direction of Travel | Forward |
| Special Capability | Turning |
| Operating Time (hours) | 8 |
| Charging Time (hours) | ≤ 1.5 |
Contact Us for Consultation & Quotation
If you are looking for an automated towing solution with the CT5-500L autonomous towing vehicle, please contact us for detailed support on system configuration, deployment, and warranty policies.
