Dual Divert Conveyor PM 9730 – 24/48V

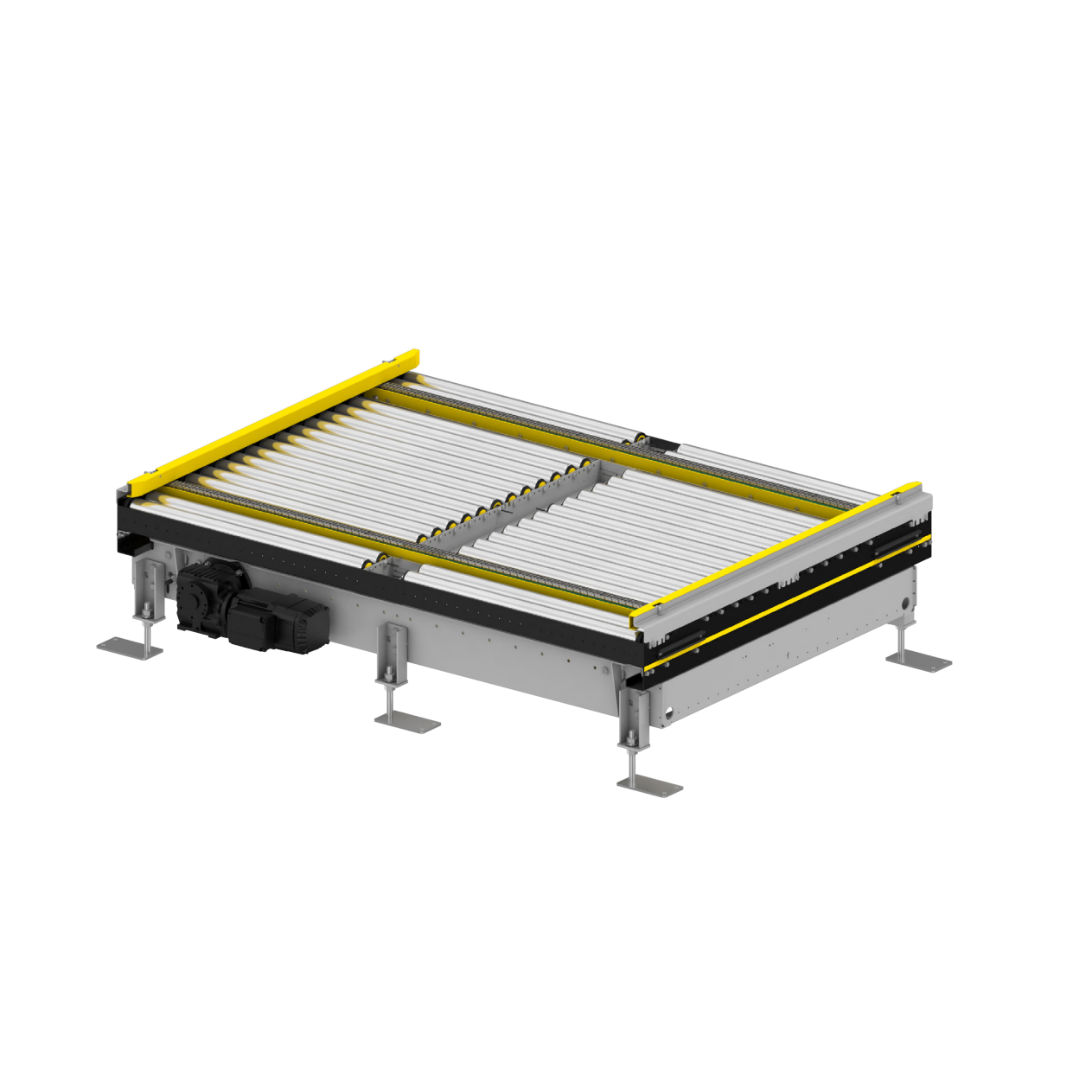

The dual divert conveyor PM 9730 – 24/48V is a chain-driven divert conveyor module with roller drives operating at 24/48V. The chain transfer unit is used for parallel pushing during the horizontal conveying of both loaded and empty pallets.
The conveyor chains are guided within plastic guide channels. An integrated chain tensioning station with a 180° wrap angle allows easy chain retensioning. The PM 9730 – 24/48V dual divert conveyor is available with 2 chain strands.
GENERAL INFORMATION
The dual divert conveyor PM 9730 – 24/48V is a chain-driven divert conveyor module with electrically driven rollers operating at 24/48V. The chain transfer unit is used for parallel pushing during the horizontal conveying of both loaded and empty pallets.
The conveyor chains are guided within plastic guide channels. An integrated chain tensioning station with a 180° wrap angle allows easy chain retensioning. The PM 9730 – 24/48V dual divert conveyor is available with 2 chain strands.
The drive units for the chain strands are positioned between the strands, beneath the conveying path. PM 9730 – 24/48V is suitable for pallets and load carriers with weights of up to 500 kg. Height-adjustable support legs allow installation on various floor conditions. With its compact design and optimized footprint, the system is well suited for production areas and warehouse environments.
TECHNICAL SPECIFICATIONS OF PM 9730 – 24/48V
- Maximum Load Capacity: 500 kg
- Conveyor Speed: 0.1 to 0.5 m/s
- Maximum Lifting Stroke: 30 mm
- Number of Stop Positions: 2
- Ambient Temperature: +5 °C to +45 °C (non-condensing), optional for cold storage environments
- Incline/Slope: Not suitable
- Number of Chain Strands: 2
Chain Conveyor Drive
- Rated Voltage: 400 V
- Motor Type: Gear motor
- Power Output: 0.37 to 1.5 kW
- Roller Chain: 5/8″ × 3/8″, duplex type with straight side plates
Roller Conveyor Drive
- Rated Voltage: 24/48 V
- Motor Type: Interroll RollerDrive EC 5000
- Power Output: 0.05 kW
- Roller Chain: 5/8″ × 3/8″
Lifting Drive
- Rated Voltage: 400 V
- Motor Type: Gear motor
- Power Output: 0.37 to 0.55 kW
Rollers
- Roller Type: Interroll Series 3500
- Roller Diameter: 60 mm
- Roller Wall Thickness: 2 mm
- Material: Galvanized steel
Model Dimensions
- Conveyor Width (CW): 860, 1,060, 1,295 mm
- Total Width (TW): Variable, up to 2,880 mm
- Chain Strand Spacing (CS): 940, 1,065 mm
- Top of Roller Height (TOR): 350 to 1,200 mm
- Module Length (ML):
-
- 1,450 mm (when CS = 1,065 mm)
- 1,550 mm (when CS = 940 mm)
