Dual Divert Conveyor PM 9730 – 400V

GENERAL INFORMATION

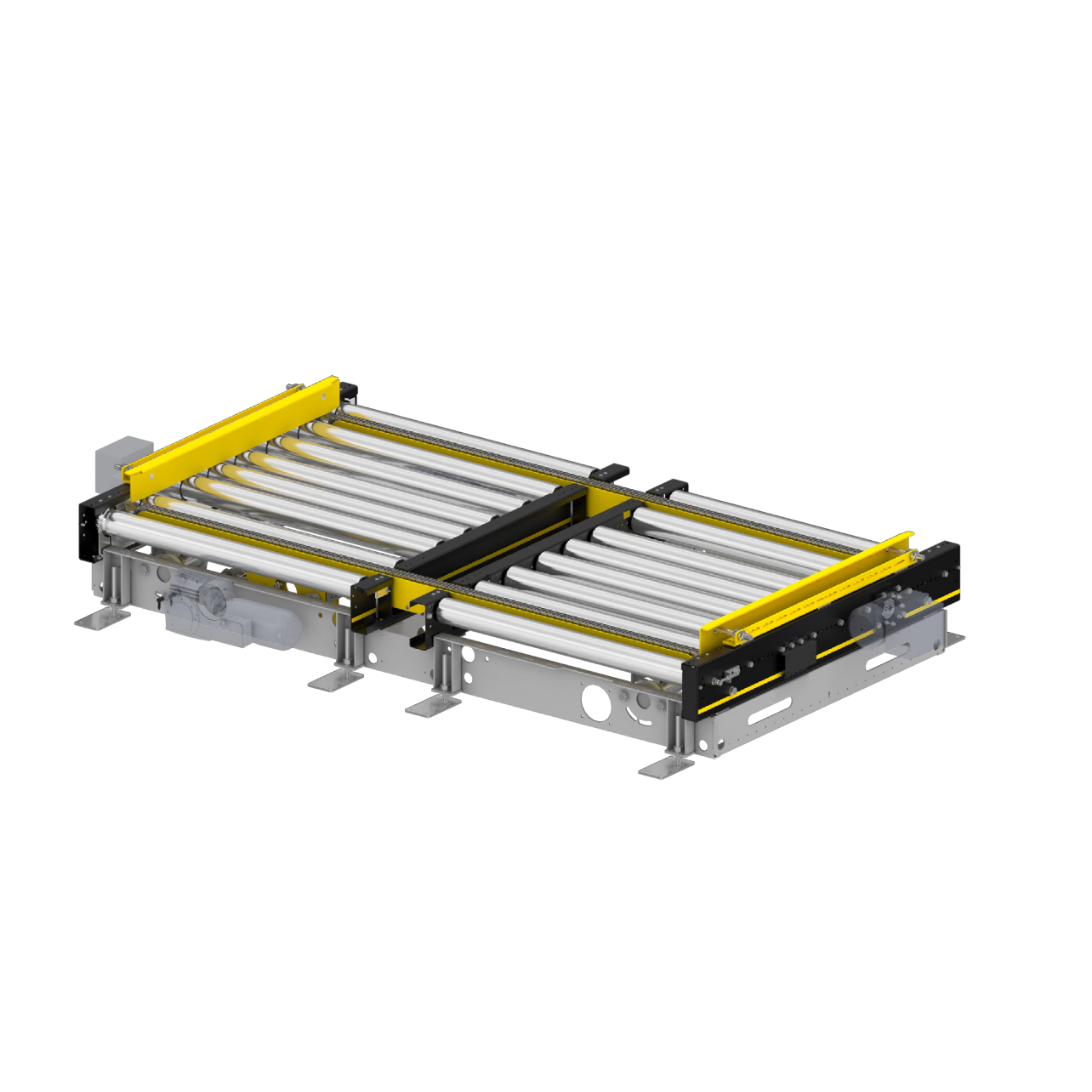

The dual divert conveyor PM 9730 – 400V is a chain-driven divert conveyor module equipped with a 400V drive motor. The chain transfer unit is used for parallel pushing during the horizontal conveying of both loaded and empty pallets.

The conveyor chains are guided by plastic guide channels, allowing smooth and reliable pallet transfer. Thanks to a small offset radius of only 43 mm, pallets can be flexibly transferred to the next conveyor. The PM 9730 – 400V module is available with 2 or 3 chain strands, offering multiple configuration options for pallet transfer applications and handling loads exceeding 1,000 kg.

An integrated chain tensioning station with a 180° wrap angle allows easy chain retensioning. The drive unit of the chain conveyor system is positioned between the strands, beneath the conveying path.

PM 9730 – 400V is suitable for pallets and load carriers with weights of up to 1,500 kg. Height-adjustable support legs enable installation on various floor conditions. With its robust design, the system is ideal for handling heavy-duty pallets and high-load goods.

TECHNICAL SPECIFICATIONS OF PM 9730 – 400V

• Maximum Load Capacity: 1,500 kg
• Conveyor Speed: 0.1 to 0.5 m/s
• Maximum Lifting Stroke: 30 mm
• Number of Stop Positions: 2
• Ambient Temperature: +5 °C to +45 °C (non-condensing), optional for cold storage environments
• Incline/Slope: Not suitable
• Number of Chain Strands: 2 or 3

Chain Conveyor Drive

• Rated Voltage: 400 V
• Motor Type: Gear motor
• Power Output: 0.37 to 1.5 kW
• Roller Chain: 5/8″ × 3/8″, duplex type with straight side plates

Roller Conveyor Drive

• Rated Voltage: 400 V
• Motor Type: Gear motor
• Power Output: 0.12 to 0.55 kW
• Roller Chain: 5/8″ × 3/8″

Lifting Drive

• Rated Voltage: 400 V
• Motor Type: Gear motor
• Power Output: 0.55 kW

Rollers

• Roller Type: Interroll Series 3950
• Roller Diameter: 89 mm
• Roller Wall Thickness: 3 mm
• Material: Galvanized steel

Model Dimensions

• Conveyor Width (CW): 860, 1,060, 1,295 mm
• Total Width (TW): Variable, up to 2,880 mm
• Chain Strand Spacing (CS): 950, 1,075 mm
• Top of Roller Height (TOR): 350 to 1,200 mm
• Module Length (ML):
  • 1,450 mm (when CS = 1,075 mm)
  • 1,550 mm (when CS = 950 mm)
