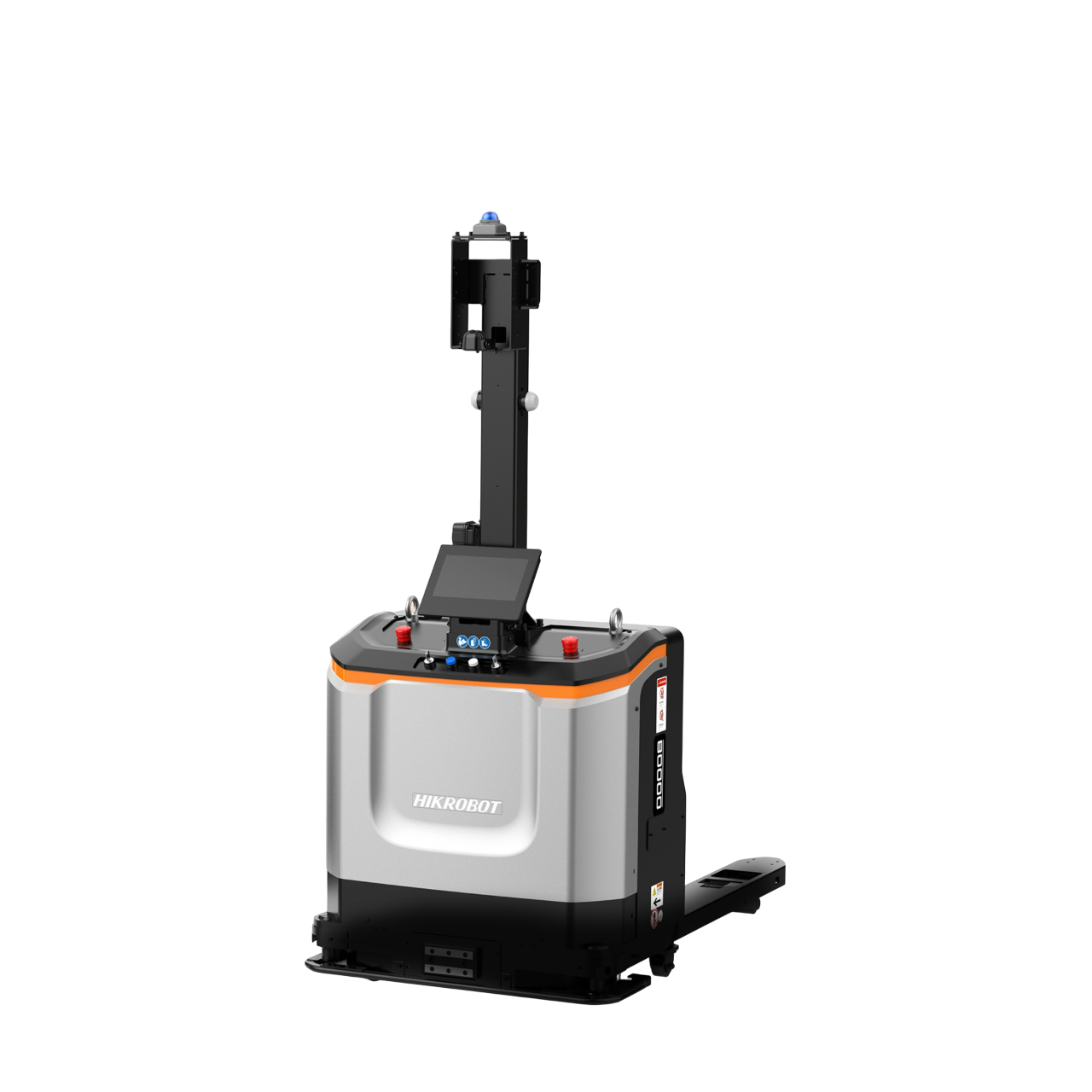

F3-1500C – Pallet Lifting Autonomous Vehicle (Pallet Forklift AGV)
The F3-1500C is a pallet-lifting autonomous mobile robot (AMR), specially designed to automatically lift, carry, and transport palletized goods in warehouses and similar environments.
It reaches a maximum travel speed of up to 2 m/s, supports payloads from 300 kg to 1,500 kg, and is equipped with 360° safety sensors, enabling reliable detection and safe operation across diverse environments and obstacles
GENERAL INFORMATION
The F3-1500C autonomous vehicle belongs to the pallet lifting AGV category and is specially designed to automatically lift, carry, and transport palletized goods in warehouses and similar environments.
It achieves a travel speed of up to 2 m/s, supports payloads ranging from 300 kg to 1,500 kg, and is integrated with 360° safety sensors, enabling flexible and reliable detection of various environments and obstacles. The F3-1500C can handle a wide range of materials and load carriers, including various types of pallets, frames, cage carts, soft packaging, and coils.
TECHNICAL SPECIFICATIONS OF THE F3-1500C
| SPECIFICATIONS | DETAIL |
| Dimensions (L × W × H) (mm) | 2245 × 806 × 2040 |
| Weight (Including Battery) (kg) | 440 |
| Load Capacity (kg) | 1000 |
| Load Center Distance (C) (mm) | 600 |
| Fork Lifting Height (h3 + h13) (mm) | 215 |
| Fork Height When Lowered (h13) (mm) | 90 |
| Fork Dimensions (s / e / l) (mm) | 85 / 180 / 1441 |
| Overall fork width (b5) (mm) | 680 |
| Applicable pallet size (mm) | 1800 × 1200 |
| Travel speed (m/s) | 2.5 |
| Positioning accuracy (mm / °) | ±10 / ±1 |
| Minimum turning radius (Wa) (mm) | 1701 |
| Movement mode | Forward, backward, curved movement, in-place rotation |
| Minimum aisle width (Ast) (mm) | 2525 |
| Operating time (h) | 6 ~ 8 |
| Charging time (h) | ≤2 |
| Human–Machine Interface (HMI) | Touchscreen Display |
| Navigation Mode | 3D Navigation / LSLAM / Visual aid |
