Automatic Gear Train Assembly Machine

ETEK’s Automatic Gear Train Assembly Machine is an advanced solution designed to help manufacturers of small devices—such as watches, toys, printers, and photocopiers—improve productivity and product quality. Powered by high-speed SCARA robot technology and an integrated vision inspection system, the machine ensures every assembled product meets quality standards, minimizes errors, and optimizes operating costs.

Product Overview

The machine is professionally engineered for the automatic assembly of gear train and transmission components, featuring the following key highlights:

• High speed: Only 6 seconds per product, maximizing throughput
• Absolute precision: SCARA robots combined with a vision inspection system ensure quality control for every single component
• Fully automated operation: Precise grease dispensing without excess, accurate torque-controlled screw tightening at the correct positions
• Flexible and versatile: Easily adaptable to assemble multiple product types, optimizing overall productivity
• High reliability: In-jig inspection during the assembly process eliminates defective products before they leave the production line

Intelligent Operating Process

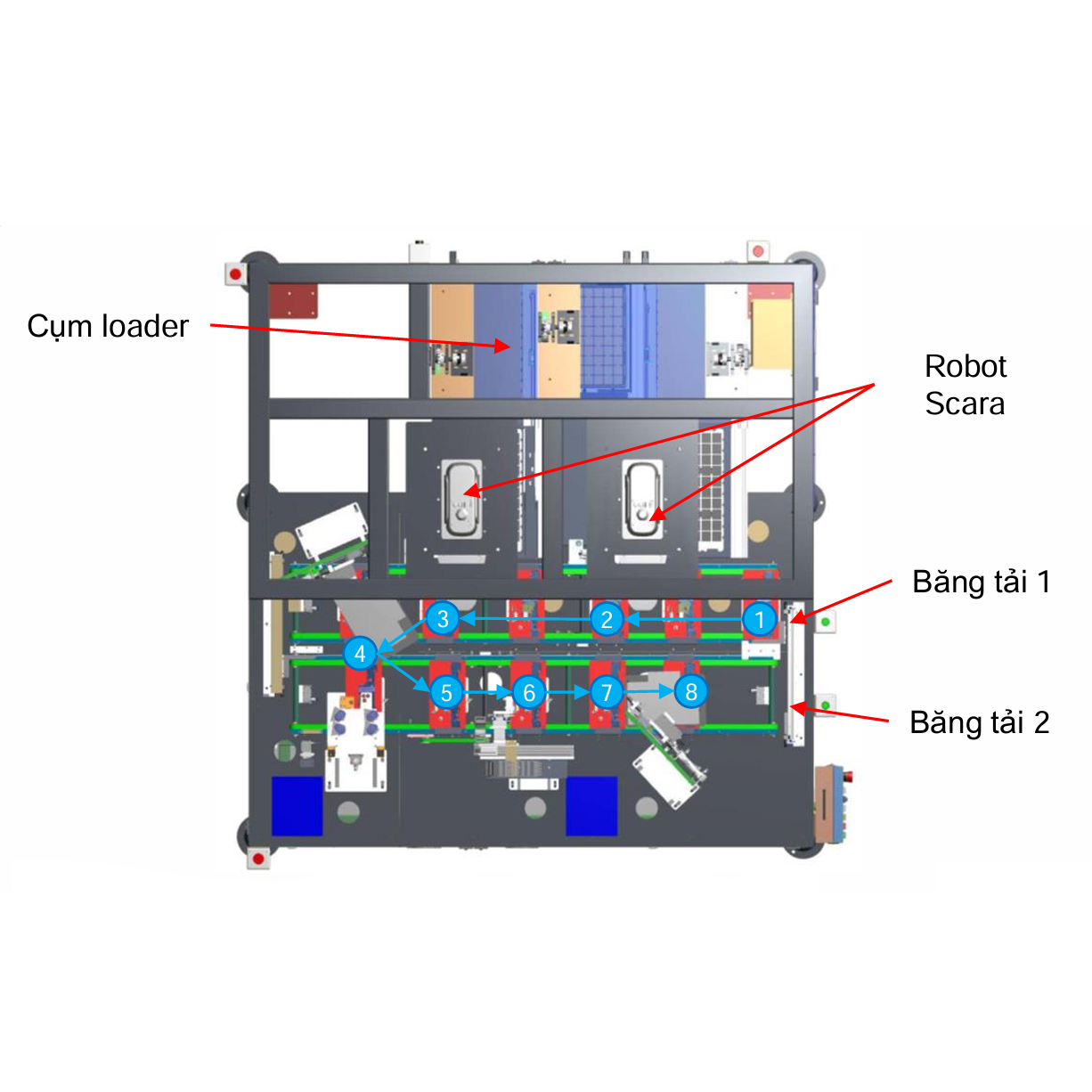

ETEK’s automatic assembly machine operates through an intelligent workflow, automating nearly the entire assembly process:

1. The operator places the housing into the jig to prepare the product for assembly

2. The product is inspected on the jig using the vision system

3. The robot picks up the gears from the tray and assembles them into the product

4. Automatic screw tightening with precise torque control

5. A pneumatic cylinder transfers the jig from conveyor 1 to conveyor 2

6. Automatic grease dispensing with no excess, ensuring optimal transmission performance

7. Motor installation and final screw tightening

8. The operator removes the product and performs a final inspection before it is released to the market

Multi-Industry Applications

The ETEK Automatic Gear Assembly Machine is suitable for a wide range of industries, including:

• 3C Industry: Printers, photocopiers, and small electronic devices
• Watchmaking Industry: High-precision assembly of gears and drive motors
• Toy Manufacturing: High-speed assembly of small components with consistent quality
• Other Small Mechanical Industries: Products requiring precise assembly of small gear transmission components

Benefits of Using ETEK Automated Assembly Machines

• Increased productivity: Significantly reduces assembly time, with a cycle time of just 6 seconds per product
• Reduced defects: The integrated vision inspection system ensures quality control for every single component
• Labor savings: Most processes are fully automated, requiring operators mainly for supervision
• Flexible production: Easily adaptable to different product models, optimizing production line efficiency
• High investment efficiency: Lowers rework and defect costs while extending the service life of both equipment and finished products

Why ETEK Is Your Trusted Automation Partner?

ETEK is a pioneer in industrial automation solutions, delivering high-quality products, advanced technologies, and cost-optimized solutions for businesses. The automatic gear train assembly machine is a clear testament to ETEK’s commitment to providing superior production efficiency and exceptional precision for its customers.
