High-Capacity Belt Conveyor – BM 1140 / BM 1141
General Information
The BM 1140 / BM 1141 are straight, high-capacity belt conveyor modules designed for efficient material handling. Specially engineered for rapid acceleration, stable operation, and space-saving installation, these conveyors are ideal for applications that require product spacing within modern logistics systems.
The BM 1140 / BM 1141 conveyor modules are suitable for transporting various types of goods such as carton boxes, plastic crates, polybags, and rigid packages, while creating consistent gaps between items in acceleration-based conveying systems.

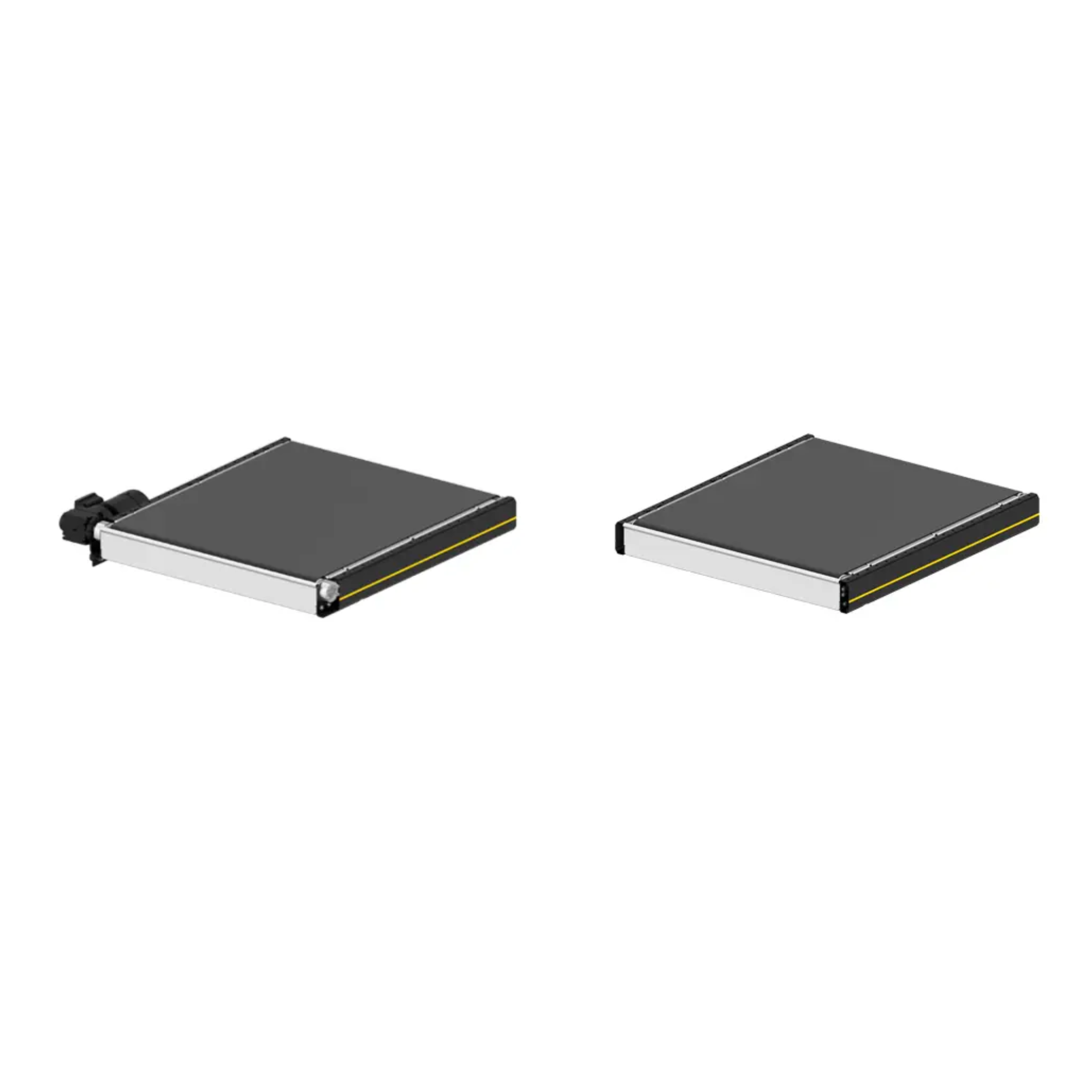

- BM 1140 is equipped with a gear motor, making it suitable for heavy loads and high-power requirements
- BM 1141 features an integrated drum motor, offering a compact design and easy maintenance
Technical Specifications
| Specifications | Detail |
| Maximum Load Capacity | 50 kg/m |
| Maximum Load Capacity per Module | 50 kg/m |
| Operating Speed | 0.1 – 3.0 m/s |
| Maximum Tilt Angle | Not supported |
| Operating Ambient Temperature | +5 °C to +40 °C |
| Rated Voltage | 400 V AC, 50 Hz |
| Motor Power | – BM 1140: 0.75 kW (gear motor)
– BM 1141: 0.75 kW (drum motor) |
| Belt Type | High-Quality Double-Layer PVC |
| Sliding Surface | 3 mm Thick Galvanized Steel Plate |
| Module Length | 540 mm / 720 mm / 1.080 mm / 1.440 mm / 1.800 mm / 1.980 mm |
| Effective Width (BF) | 620 mm / 840 mm / 1.025 mm / 1.225 mm |
| Total Width (TW) | – BM 1140: BF + 375 mm
– BM 1141: BF + 100 mm |
| Side Guide Height | 150 mm, 300 mm, 600 mm |
Conclusion
BM 1140 / BM 1141 is the ideal solution for systems requiring high-speed product spacing, stable operation, and minimal installation space. With flexible motor configurations and modular length options, the system can be easily integrated into production lines, factory intralogistics systems, or modern distribution centers.
