High-Capacity Belt Conveyor – BM 1150 / BM 1151
General Information

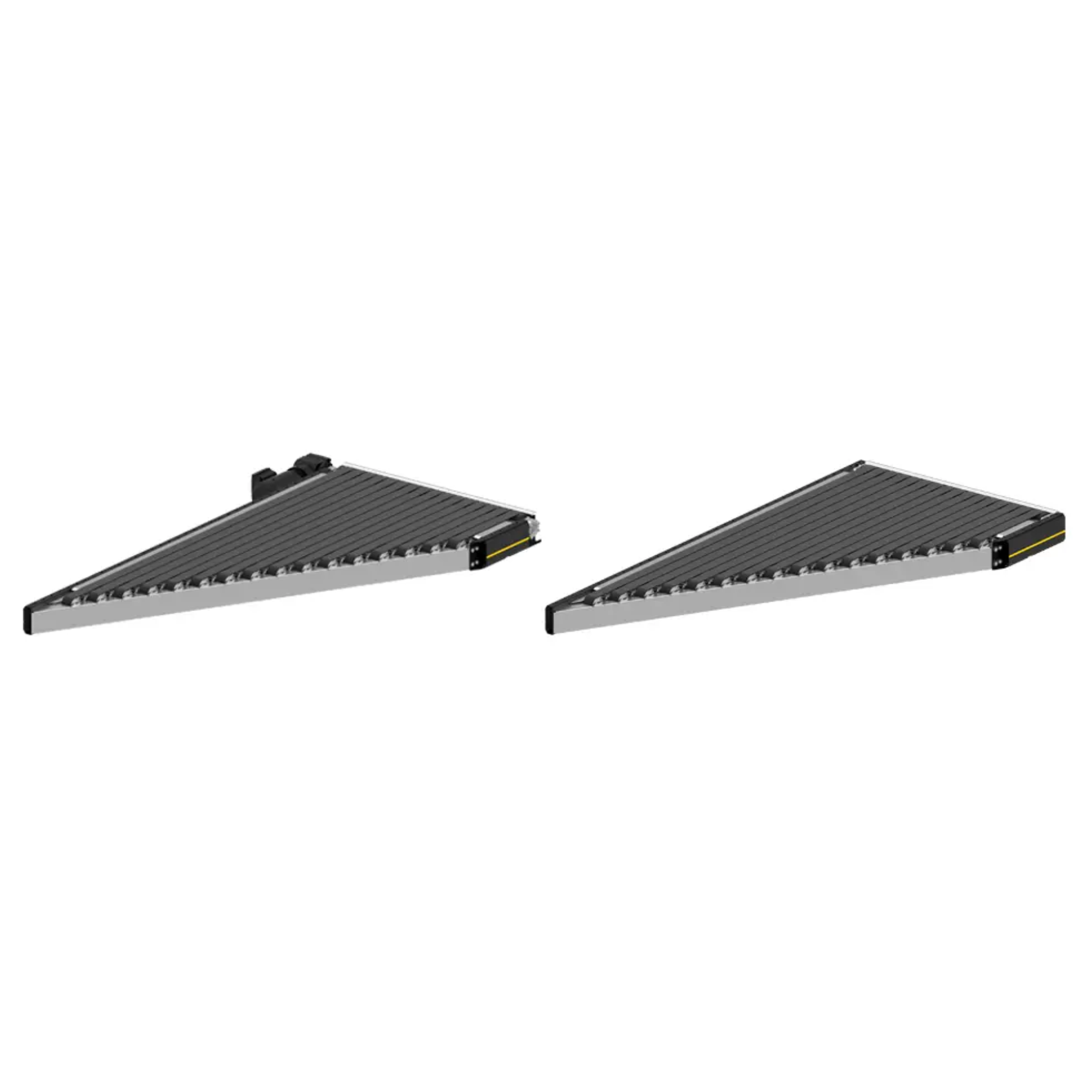

The BM 1150 / BM 1151 belt conveyor is a strip conveyor merge module designed for high-capacity material handling systems. Featuring angled merge edges of 30° or 45°, this conveyor allows two belt conveyor lines to be seamlessly merged at the corresponding angles. When combined with additional sorting components, the system can also be configured to divert or split product flows.
- BM 1150 is driven by a gear motor
- BM 1151 is powered by a drum motor
Technical Specifications
| Specifications | Detail |
| Maximum Load Capacity | 50 kg/m |
| Maximum Load Capacity per Zone | 50 kg/zone |
| Operating Speed | 3.0 m/s |
| Power Consumption per Zone | 0.75 kW |
| Operating Temperature | +5 °C to +40 °C |
| Rated Voltage | 400 V |
| Merge Angle | 30° or 45° |
| Driver | Drum motor (BM 1151) or Gear motor (BM 1150) |
| Effective Width (BF) | 620 / 840 / 1 025 / 1 225 mm |
| Overall Width (TW) | • BM 1150: BF + 375 mm
• BM 1151: BF + 100 mm |
| Side Guide Height | 150 / 300 / 600 mm |
Conclusion
The BM 1150 / BM 1151 is a high-performance merge and divert belt conveyor module, ideal for systems that require material flow redirection at flexible angles of 30° or 45°. Its pre-assembled design, multiple motor options, and compatibility with additional sorting equipment make it easy to integrate into modern intralogistics systems.
