Markem-Imaje 2200 Series labeling machines

Markem-Imaje 2200 Series print and apply labeling machine – supports thermal transfer and direct thermal printing, with printing speeds up to 300 mm/s, A5 label format, and single- or double-side pallet labeling in just 7–20 seconds. Supports 1D barcodes, 2D codes, multiple image formats, RS-232 and Ethernet connectivity, operates on 110–240 VAC power with 6 bar compressed air, and is available in left- or right-hand conveyor configurations.

Detailed information

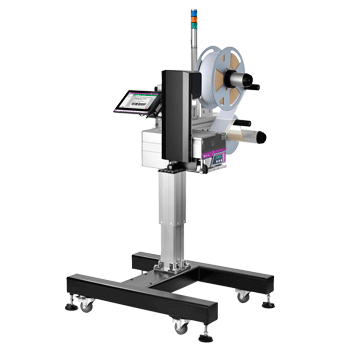

Markem-Imaje 2200 Series print and apply labelers from the European brand Markem-Imaje are a flexible labeling solution for cartons, cases, and pallets—supporting single-side or dual-side labeling with a wide range of label sizes.

Technologies & Technical Specifications

Printing methods: Thermal transfer or direct thermal printing, delivering sharp print quality and GS1-compliant barcodes (ANSI A/B).
Printhead width & resolution:
- 2620 printhead: 168 mm, 200 dpi (8 dots/mm)
- 2630 printhead: 162 mm, 300 dpi (12 dots/mm)

Maximum print speed: up to 300 mm/s, achieving over 150 cases/minute with the eTouch-S standard.

Flexible Application Capabilities

Multi-directional rotary applicator, enabling single-side or two-side pallet labeling.
Automatic label tension adjustment, label-present sensors, and jam prevention to avoid missing or misapplied labels.
eTouch-S® AI-enabled applicator, ensuring smooth, precise motion and high-speed efficiency.
Multiple applicator options (tamp, blow, wipe, corner wrap), easily adaptable for top, side, or corner labeling.

Speed – Accuracy – Barcode Control

Prints GS1-compliant barcodes with ANSI A/B readability, including 2D codes, images, and text.
Automatic barcode verification system (scanner) ensures every case is correctly labeled before shipment.
Integrated CoLOS® software with a color touchscreen interface, enabling easy template selection, parameter setup, and ERP connectivity.

Media Handling & Operating Conditions

Label specifications:

Maximum label width: 178 mm
Label roll diameter up to 350 mm (approx. 2,550 labels/roll)
Core diameter: 76 mm

Ribbon:

Maximum length 560–660 m, 25 mm core

Operating environment:

Humidity 20–85%, non-condensing

Power & utilities:

110/240 VAC, 50/60 Hz
Clean compressed air 6 bar

Safety & Maintenance

Automatic stop system when labeling errors are detected, ensuring safety and minimizing faults.
Tool-less design allows printhead, roller, and ribbon replacement in under 60 seconds.

Máy in dán nhãn Markem-Imaje 2200 series

Benefits

Higher productivity: fast printing, quick media change, minimal downtime.
High accuracy: supports multiple fonts, Unicode characters, images (BMP, PNG, JPEG), 1D/2D barcodes.
GS1 reliability: barcodes and DataMatrix codes meet international traceability standards.
User-friendly: multi-language interface, intuitive operation, network connectivity (USB, RS-232, Ethernet, FTP).
Cost optimization: low power consumption and environmentally friendly design with over 95% recyclable materials.
