Multi-Directional Ball Transfer Table – RM 8130
RM 8130 is an ideal solution for workstations, quality inspection areas, or flexible component transfer points within production lines.
General Information

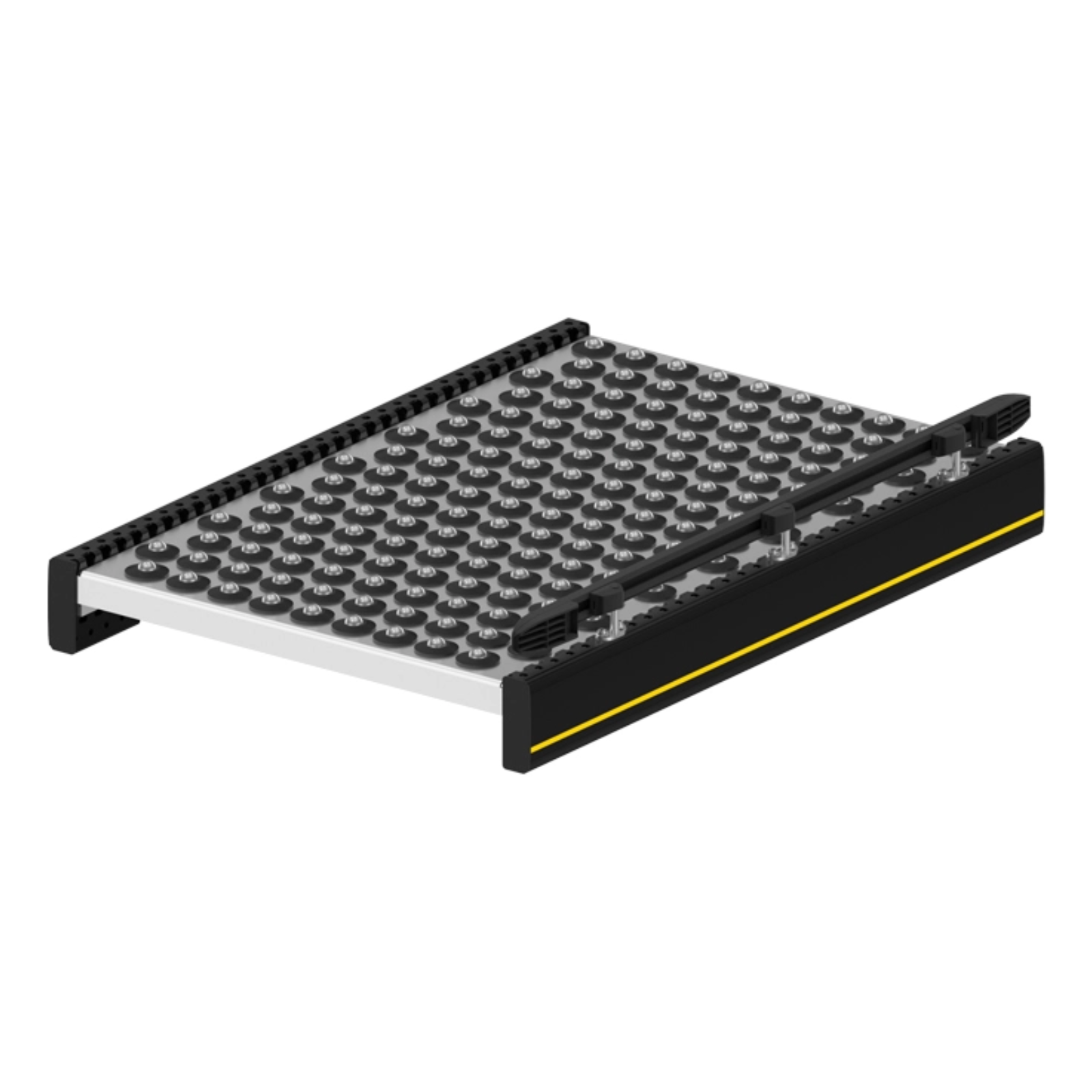

RM 8130 is a non-powered multi ball transfer module. The RM 8130 multi-directional ball transfer table is optimally designed to allow products with rigid bottoms to move smoothly in any direction using only minimal pushing force.
With its ability to support gentle and precise product movement, RM 8130 is an ideal choice for manual handling areas such as quality inspection, labeling, packing, sorting, or carton direction changes. Thanks to its high versatility, the solution is widely used across electronics, pharmaceuticals, food, logistics, and e-commerce industries. RM 8130 also serves as an efficient interface module between automated conveyor systems and semi-manual handling zones, contributing to improved overall operational efficiency.
Technical Specifications
| Specification | RM 8130 |
| Module Type | Non-powered ball transfer table |
| Maximum Load Capacity | 100 kg/m |
| Operating Mode | Manual push operation, no table tilting required |
| Ball Type | Interroll Series 5500 |
| Ball Diameter | 25.4 mm |
| Nominal Width (BF) | 420 / 620 / 840 mm (custom options available) |
| Overall Width (TW) | BF + 80 mm |
| Module Length (ML) | Up to 2160 mm |
| Ball Pitch | 60 mm |
| Operating Temperature | –5 °C to +40 °C |
| Side Guard Height (HSG) | 68 mm (standard), adjustable from 35 to 80 mm |
| Delivery | Semi-assembled; side guides and end caps ordered separately |
Conclusion
The RM 8130 ball transfer table enables operators to easily rotate, adjust, and move products in any direction. When combined with other MCP modules such as RM 8110 (straight roller conveyor), RM 8120 (curved roller conveyor), or RM 8210 (motorized conveyor), your system becomes fully integrated and operates at optimal efficiency.
RM 8130 is an ideal solution for businesses that require high flexibility in product handling and inspection. With its non-powered, multi-directional design, RM 8130 is easy to operate while optimizing investment costs—making it especially suitable for production lines that combine manual handling with automation.
