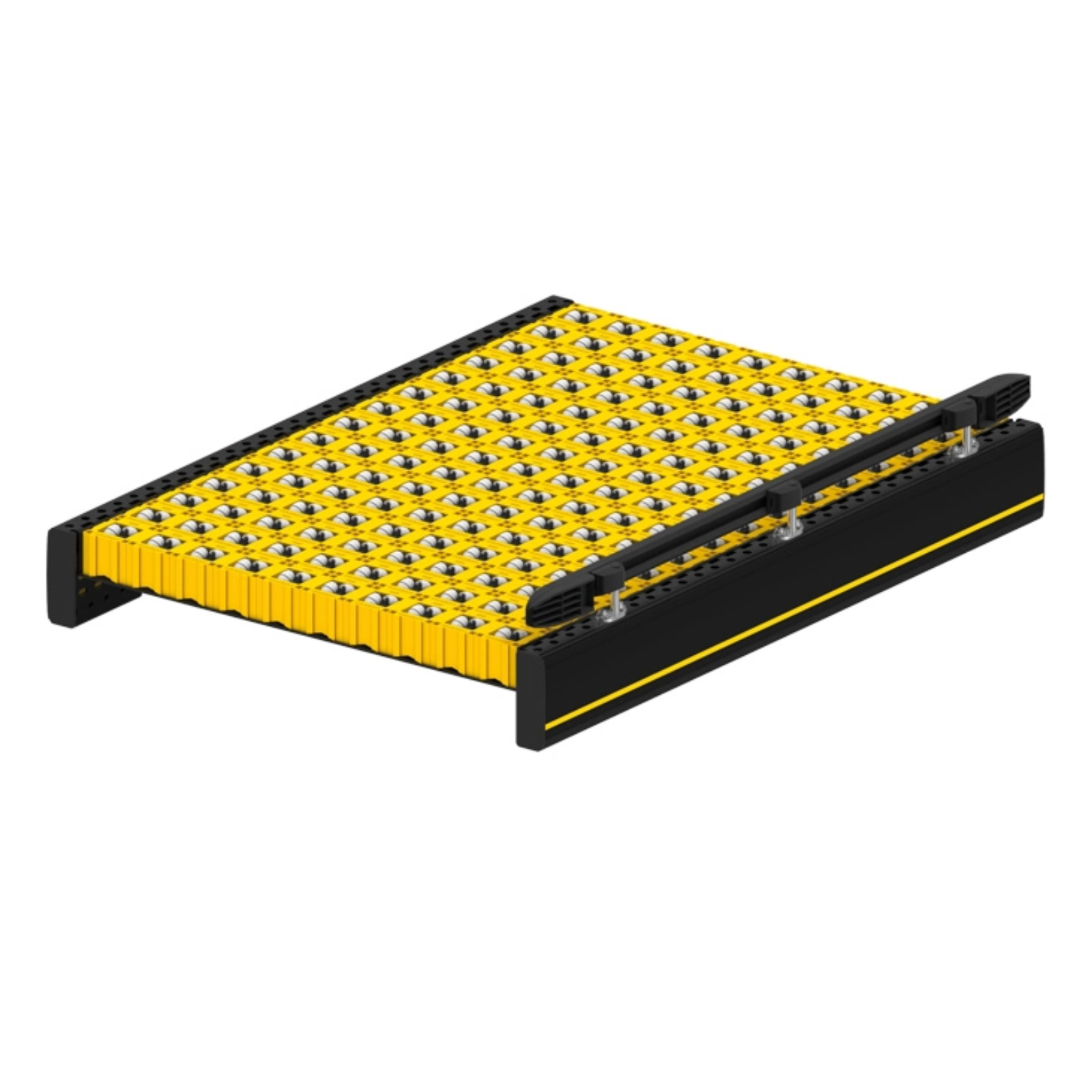

Multi-Directional Roller Table – RM 8140
The RM 8140 Omni-Wheel Table is a module that allows products with soft bottoms to easily change their direction of movement in any desired way using only minimal applied force.
General Information
RM 8140 is a non-powered multi-directional roller table module. It is engineered with a specialized omni-directional wheel system that enables smooth movement of items in any direction with minimal applied force. This makes it an ideal solution for handling, inspection, and sorting areas in modern manufacturing plants and distribution centers.
Thanks to its high maneuverability and ease of operation, the RM 8140 allows operators to precisely adjust the direction of goods without tilting the table surface or installing additional electrical equipment. As an essential component in semi-automated conveyor lines, the RM 8140 not only improves operational efficiency but also helps reduce overall investment costs.
Technical Specifications
| Specification | RM 8140 |
| Module Type | Non-powered omni-wheel transfer table |
| Maximum Load Capacity | 60 kg/m |
| Operation | Manual operation, no table tilting required |
| Transfer Wheel Type | Interroll Series 2800 |
| Wheel Diameter | 48 mm |
| Wheel Material | Polyamide shaft, polypropylene housing |
| Nominal Width (BF) | 420 / 620 / 840 mm (custom options available) |
| Overall Width (TW) | BF + 80 mm |
| Module Length (ML) | Up to 2160 mm |
| Wheel Pitch | 62.5 mm |
| Operating Temperature | –5 °C to +40 °C |
| Side Guard Height (HSG) | 68 mm (standard), adjustable from 35 to 80 mm |
| Delivery | Semi-assembled; side guards and end caps ordered separately |
Conclusion
RM 8140 is particularly well suited for light-product handling lines that require high flexibility, especially in industries such as pharmaceuticals, food, electronics, and consumer goods manufacturing. It delivers outstanding performance at workstations, inspection and packing stations, as well as transfer points between automated conveyor modules—areas that demand precise, gentle handling to minimize surface damage and scratches.
Contact us today for expert consultation on the most suitable solution for your production line!
