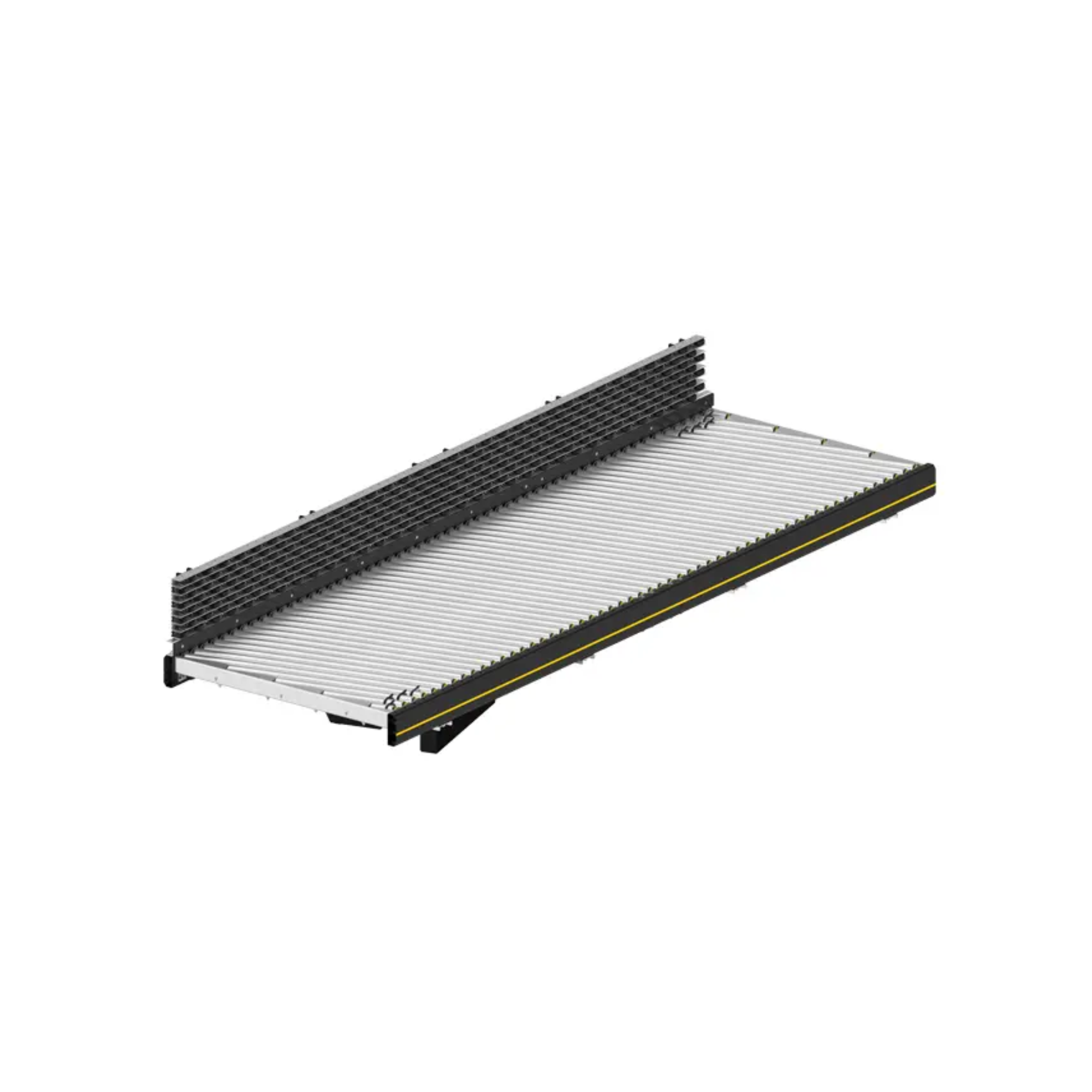

RM 1210 Roller Conveyor
The RM 1210 roller conveyor module uses continuously driven rollers and features a modular design that allows seamless integration with a wide range of other modules, enabling the completion of a fully automated conveyor system.
General Information
In modern production and packaging lines, precise product alignment before transfer to the next process is a critical factor in ensuring efficiency and accuracy. The RM 1210 is a continuously driven roller conveyor module, specifically designed to guide products oriented perpendicular to the conveying direction to one side while accurately aligning them through a stable drive mechanism and a robust structural design.
Technical Specifications
| Specification | Detail |
| Maximum Load Capacity | 50 kg/m |
| Roller Diameter | 50 mm |
| Roller Material | 1.5 mm galvanized steel |
| Roller Type | Interroll series 1700 |
| Conveying Speed | 2 m/s |
| Drive Method | Flat belt drive |
| Rated Voltage | 400 V |
| Operating Ambient Temperature | +5 to +40 °C |
| Incline Operating Capability | Not suitable |
Conclusion
With its specialized design, stable operation, and high durability, the RM 1210 is an ideal choice for businesses seeking an automated product alignment solution in production lines. It not only enhances operational efficiency but also helps minimize errors and optimize packaging and assembly processes.
Contact us today for expert consultation and a solution tailored to your production line!
