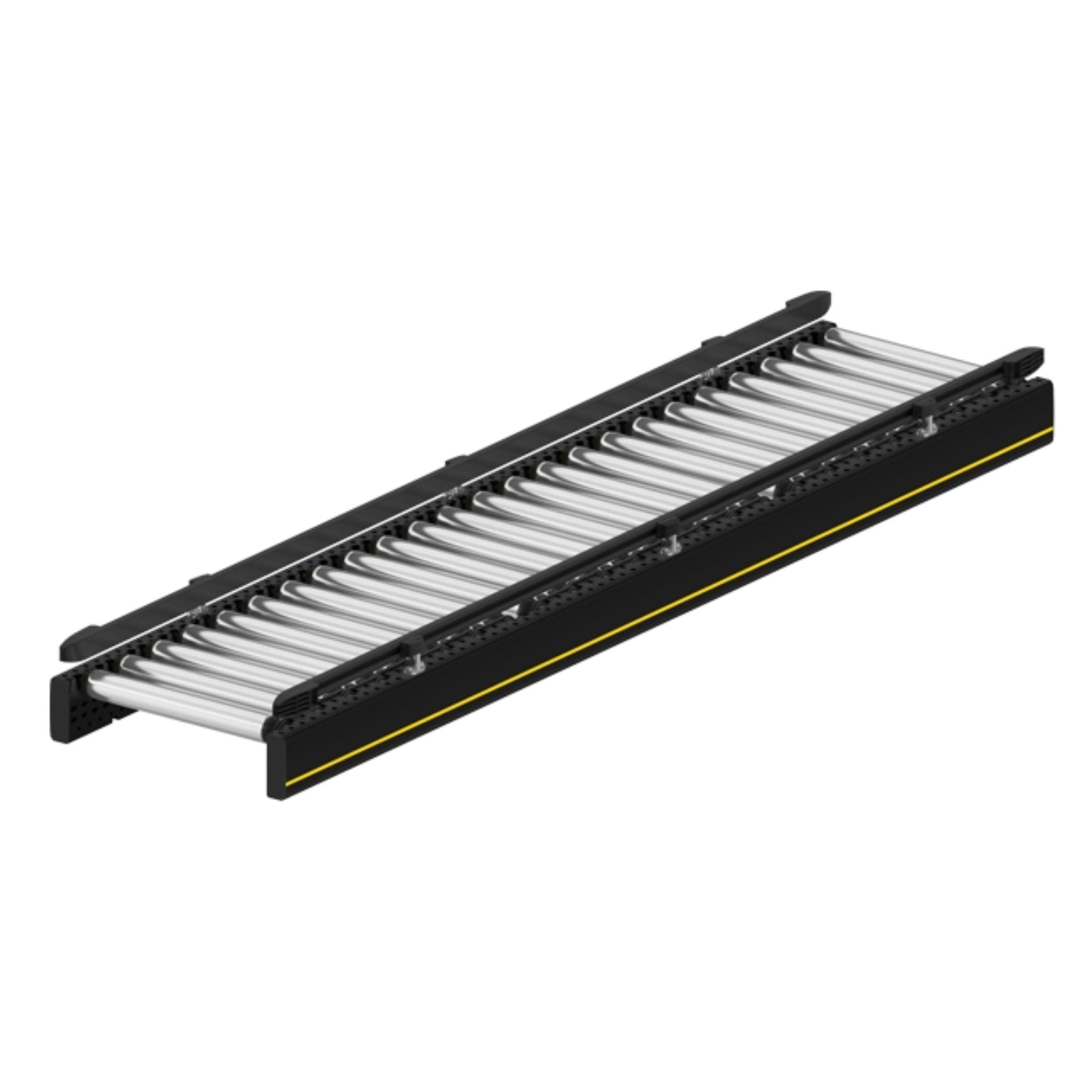

RM 8310 – Straight Driven Roller Conveyor
The RM 8310 is a straight driven roller conveyor module powered by a RollerDrive motor, designed to support zero-pressure accumulation conveying.
GENERAL INFORMATION
The RM 8310 is a straight driven roller conveyor module within the Interroll Modular Conveyor Platform (MCP). Controlled by an intelligent RollerDrive motor, the RM 8310 supports zero-pressure accumulation, making it an ideal solution for modern logistics systems and highly automated production lines.
KEY FEATURES
- Zone-based drive: Each zone operates independently with one RollerDrive EC5000 motor, connecting rollers via PolyVee belts to ensure precise speed control and prevent product collisions
- Flexible operating speed: From 0.1 to 1.0 m/s at a 50 kg load, and up to 1.39 m/s for lighter loads (35 kg, 48V, 50W), optimizing performance for different product types
- Integrated sensors & bus system: Each zone is equipped with one sensor and an integrated communication bus for fast and seamless connection to the central controller
- Reliable operation in cold storage: Stable performance in environments ranging from –30°C to +40°C, suitable for chilled and frozen warehouses
- Energy-efficient & easy maintenance: Pre-assembled modular design with standard 24V or 48V power supply, reducing energy consumption and simplifying maintenance
- Premium roller quality: Equipped with Interroll Series 3500 zinc-plated steel rollers, 50 mm in diameter, ensuring smooth power transmission and long-lasting durability
APPLICATIONS
The RM 8310 is widely used in logistics centers, sorting warehouses, packaging lines, and automated manufacturing plants. Thanks to its intelligent zero-pressure accumulation capability, the RM 8310 ensures product safety, minimizes collisions, and supports stable operation even in complex routing systems. It is especially well suited for e-commerce, FMCG, pharmaceutical, food, and electronic components industries.
RM 8310 – Zone-Driven Conveyor for Smart, Flexible, and Safe Material Handling
The RM 8310 is a powerful solution for businesses that require a high level of automation in material handling and product flow. With its intelligent zone-based drive mechanism, the system enables individual control of each load in every zone, ensuring smooth, congestion-free conveying. Combined with the MultiControl system and easy scalability, the RM 8310 serves as the core of any modern MCP system.
TECHNICAL SPECIFICATIONS
| Specifications | RM 8310 |
| Conveyor type | Straight driven roller conveyor |
| Drive structure | 1 RollerDrive per zone + PolyVee belt + driven rollers |
| Maximum Load Capacity per Zone | 50 kg |
| Conveyor Speed | 0.1 – 1.0 m/s (50 kg), to 1.39 m/s (35 kg, 48V) |
| Power per Zone | 50 W |
| Maximum Incline Angle | 4° |
| Operating Voltage | 24V / 48V |
| Operating Temperature | 0 to +40 °C (standard), –30 to 0 °C (cold storage) |
| Motor Type | Interroll RollerDrive EC5000 |
| Control System | MultiControl (supplied with bus cables and sensors) |
| Roller Type | Interroll Series 3500 – Galvanized Steel, Ø50 mm |
| Roller Pitch | 60 / 90 / 120 / 150 mm |
| Nominal Width (BF) | 420 / 620 / 840 mm (customizable) |
| Maximum Module Length (ML) | 4320 mm |
| Side Guard Height (HSG) | 68 mm (standard), adjustable from 35 to 80 mm |
| Delivery | Semi-assembled, supplied with sensors and bus cables; legs & end caps ordered separately |
CONCLUSION
RM 8310 is the most advanced and efficient driven roller conveyor solution within Interroll’s MCP platform. Featuring zero-pressure accumulation, seamless integration, and adaptability to a wide range of operating environments, it is the ideal choice for enhancing performance and safety in automated material handling systems.
Contact us today for expert consultation on the most suitable solution for your production line!
