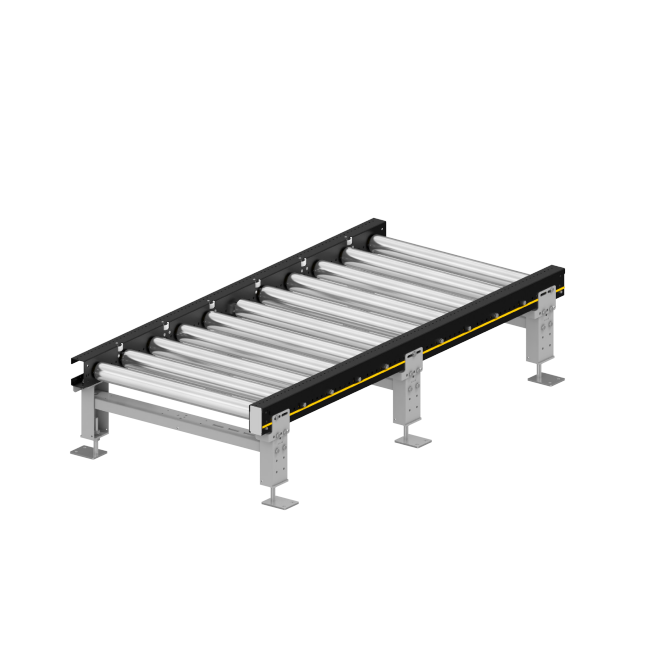

Roller Conveyor – PM 9711 FLAT
The PM 9711 FLAT roller conveyor is suitable for horizontal transportation of both loaded and empty pallets.
Chain tensioning is not required thanks to the chain-driven transmission from one roller to the next. At the same time, the robust steel frame also serves as a side guide rail. Uneven or irregular floor surfaces can be easily compensated for using height-adjustable support legs.
GENERAL INFORMATION
The PM 9711 FLAT roller conveyor is suitable for horizontal pallet transportation.
Chain tensioning is not required thanks to the chain-driven transmission from one roller to the next. At the same time, the robust steel frame also serves as a side guide rail. Height-adjustable support legs allow installation on various floor types.
The drive unit is integrated inside the roller and compactly housed within the side frame, enabling individual modules to be installed close to one another. When combined with the MultiControl and Pallet Control systems, implementing a zero-pressure accumulation conveyor system becomes simple and efficient.
TECHNICAL SPECIFICATIONS
- Maximum load capacity: 1,000 kg/m or 1,200 kg per drive unit
- Conveyor speed: 0.22 m/s
- Ambient temperature: +5 °C to +45 °C (non-condensing), optional for cold storage environments upon request
Drive System
- Rated voltage: 400 V
- Motor type: Pallet Drive
- Power output: 0.07 kW
- Roller chain: 5/8″ × 3/8″
Rollers
- Roller type: Interroll Series 3950
- Roller diameter: 80 mm (minimum conveyor height TOR: 95 mm)
- Drive sprocket: Z18
- Roller tube wall thickness: 3 mm
- Material: Galvanized steel
Support Frame
- Mounting hole pitch: 31.75 mm
- Dimensions: 200 × 70 (74) × 4 mm
- Finish: Powder-coated, primary color RAL 9005 (black) with accent color RAL 1023 (yellow)
- Material: Steel
MODEL DIMENSIONS
- Conveyor width (CW): 860, 1,060, 1,295 mm
- Model width (TW): 1,000, 1,200, 1,435 mm
- Conveyor height (TOR): 95 mm or 350 to 1,200 mm
- Roller pitch (P): 190.5 mm and 222.25 mm
- Model length (ML): 300 to 2,980 mm (depending on roller pitch)
