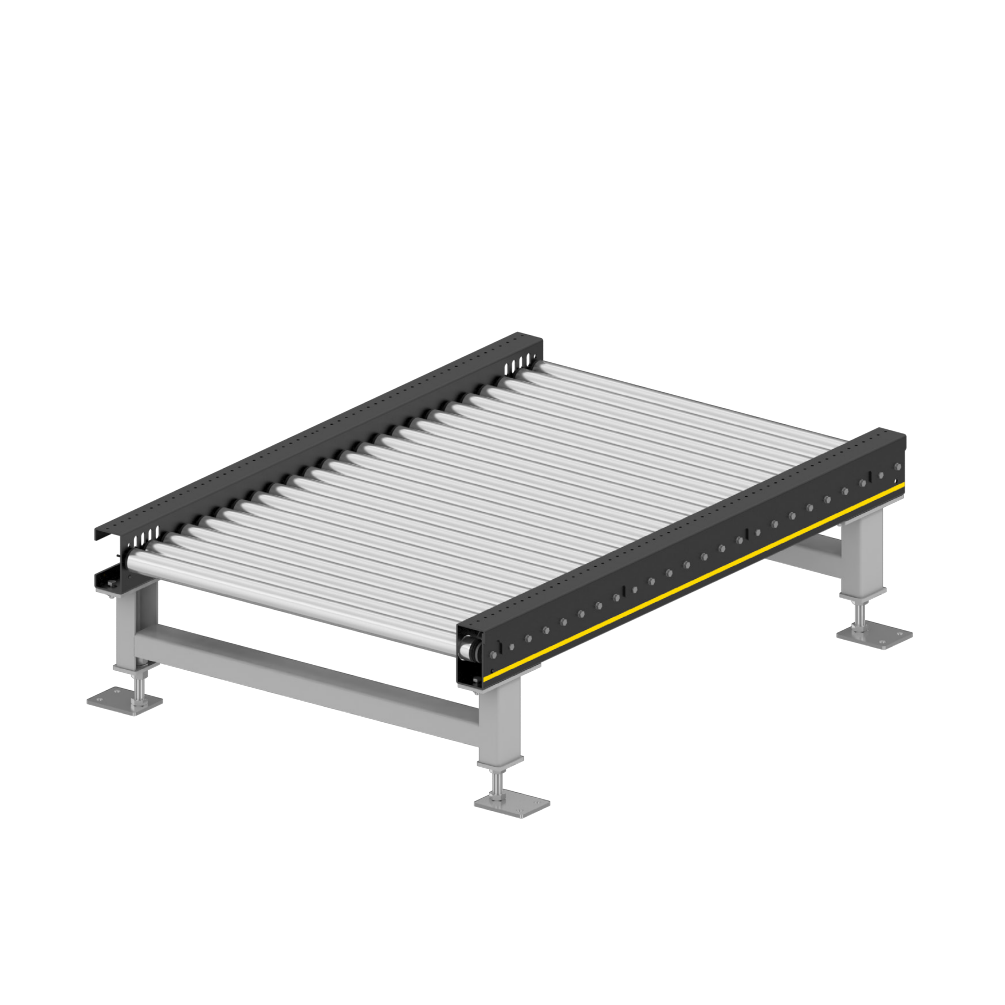

Roller Conveyor – PM 9712
The PM 9712 roller conveyor is suitable for horizontal transportation of both loaded and empty pallets.
The drive system uses a 24 V or 48 V RollerDrive motor, connected to several fixed idler rollers via a PolyVee belt. Because the motor is integrated inside the roller and compactly housed within the side frame, the modules can be installed close together, resulting in a highly compact overall design.
GENERAL INFORMATION
The PM 9712 roller conveyor is suitable for horizontal pallet transportation.
The drive system uses a 24 V or 48 V RollerDrive motor, which is connected to several fixed idler rollers via a PolyVee belt. Since the motor is integrated inside the roller and neatly housed within the side frame, the modules can be installed very close to each other, resulting in an extremely compact overall design.
In addition, the rigid steel frame also serves as a side guide rail. Uneven floor conditions can be easily compensated for by height-adjustable support legs.
When combined with the MultiControl system, setting up a zero-pressure accumulation conveyor becomes quick and straightforward.
TECHNICAL SPECIFICATIONS
General Specifications
- Maximum load capacity: 415 kg/m or 500 kg per drive unit
- Conveyor speed: 0.2 or 0.28 m/s
- Ambient temperature: +5 °C to +45 °C (non-condensing), optional for cold storage environments upon request
Drive System
- Rated voltage: 24/48 V
- Motor type: RollerDrive EC5000
- Power output: 0.05 kW
- Torque transmission: PolyVee belt
Rollers
- Roller type: Interroll Series 3500
- Roller diameter: 60 mm
- Roller tube wall thickness: 2 mm
- Material: Galvanized steel
Support Frame
- Mounting hole pitch: 30 mm
- Dimensions: 132 × 70 × 4 mm
- Finish: Powder-coated, primary color RAL 9005 (black) with accent color RAL 1023 (yellow)
- Material: Steel
MODEL DIMENSIONS
- Conveyor width (CW): 860, 1,060, 1,295 mm
- Model width (TW): 1,000, 1,200, 1,435 mm
- Conveyor height (TOR): 95 mm or 350 to 1,200 mm
- Roller pitch (P): 90 to 120 mm
- Model length (ML): 360 to 2,970 mm
