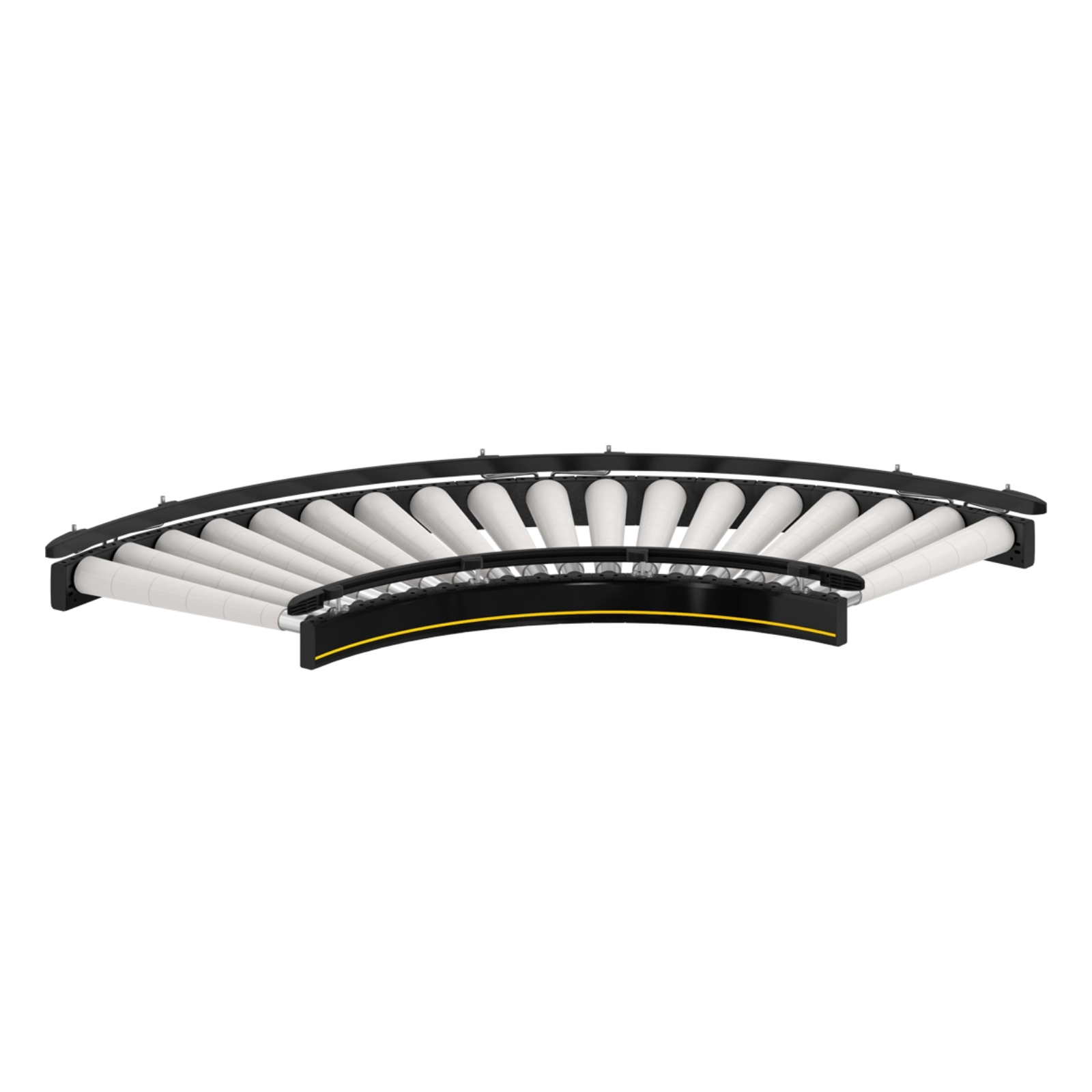

Roller Conveyor – RM 8120
The RM 8120 is a non-powered curved roller conveyor module designed to flexibly change product conveying direction, optimize operational efficiency, and reduce costs.
General Information
The RM 8120 conveyor is a non-powered curved roller conveyor module, optimized for flexible material handling without the need for an external power supply, helping reduce costs and streamline operational flow.
The RM 8120 is an ideal solution for production, assembly, and logistics areas that require changes in conveying direction. It is widely used in electronics, food, pharmaceutical manufacturing plants, and logistics warehouses—especially in U-, L-, or Z-shaped conveyor layouts. Thanks to its manual operation and simple design, this module not only saves energy and lowers maintenance costs but is also particularly suitable for manual handling areas.
Technical Specifications
| Specifications | RM 8120 |
| Conveyor Type | Non-powered curved roller conveyor |
| Maximum load capacity | 100 kg/m |
| Optional curve angles | 30° / 45° / 60° / 90° |
| Roller diameter | 50 mm |
| Maximum number of rollers | 6 (30°), 9 (45°), 12 (60°), 18 (90°) |
| Rollers | Interroll Series 1700KXO – galvanized steel with tapered plastic shell |
| Operation | Manual push / gravity operation |
| Operating temperature | 0 °C to +40 °C (normal), –30 °C to 0 °C (DF) |
| Nominal width (BF) | 420 / 620 / 840 mm (customizable) |
| Side guide height (HSG) | 68 mm (standard), adjustable from 35 to 80 mm |
| Supply | Delivered semi-assembled; support legs and end caps available as optional accessories upon request |
Conclusion
The RM 8120 is a curved conveyor module designed to efficiently connect straight sections within a conveyor system, ensuring stable product flow without misalignment or slippage through curves. It is suitable for small to medium-sized cartons and can be easily integrated with other modules such as the RM 8110, RM 8210, or RollerDrive series to create an intelligent semi-automated conveying system.
With its ability to maintain stable conveying direction, flexible design, and high compatibility, the RM 8120 is an ideal choice for businesses looking to expand or optimize semi-automated material handling systems in manufacturing plants or logistics warehouses.
Contact us today to receive professional consultation on the most suitable solution for your production line!
