Roller Conveyor – RM 8220

1. GENERAL INFORMATION

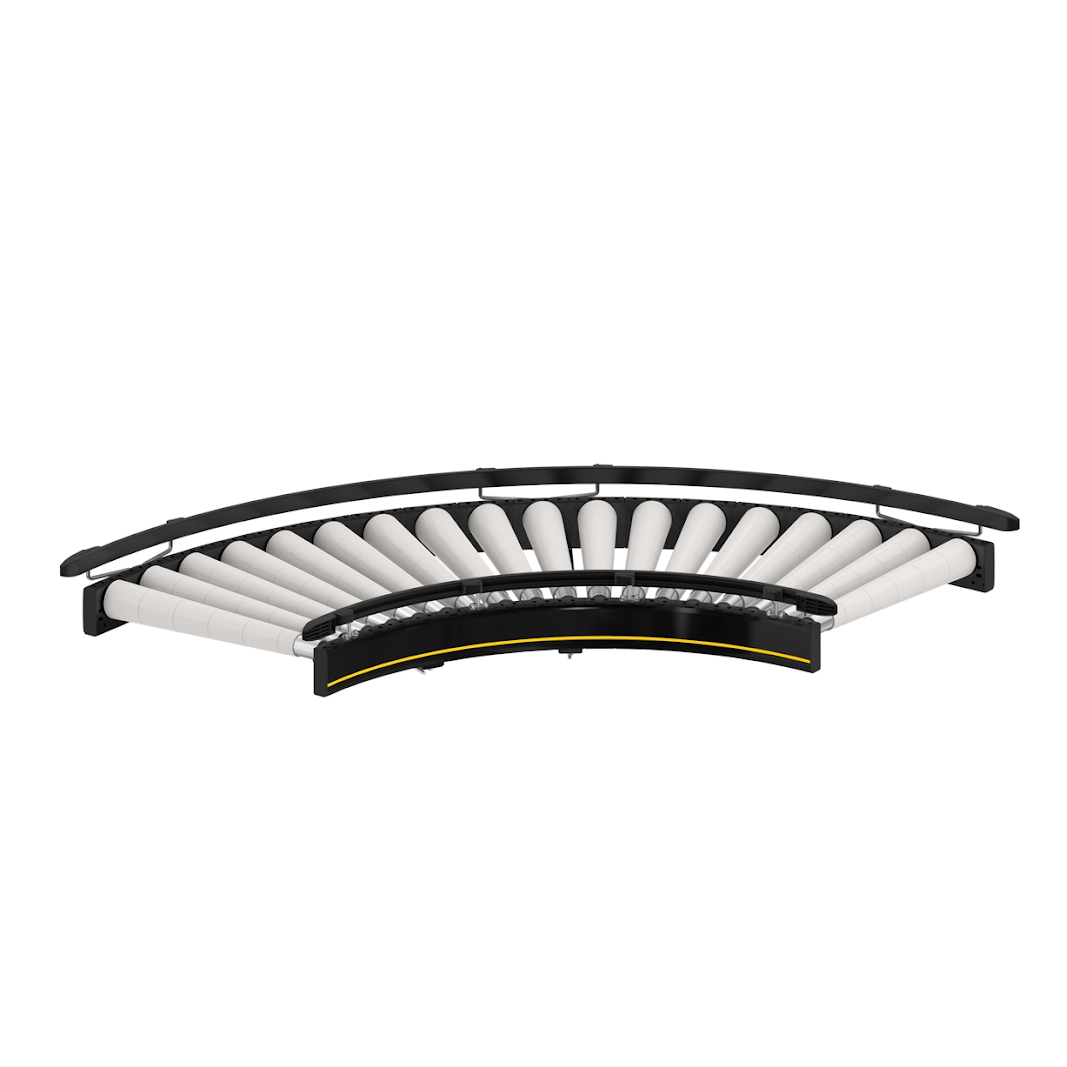

The RM 8220 roller conveyor is a specialized solution for automated material handling systems, designed to flexibly and accurately change the direction of product movement. Its curved design with tapered rollers ensures precise product alignment during transfer between conveyor modules. This conveyor is an ideal solution for modern factories, warehouses, and production lines.

2. KEY FEATURES

• Flexible conveying direction change: The curved design combined with tapered rollers keeps products precisely aligned within the conveyor frame
• Efficient power transmission: Uses a flat belt as the drive medium, allowing power to be transferred from an adjacent straight module or operated by a dedicated motor
• Quick and easy installation: Delivered as a pre-assembled unit; only the flat belt needs to be installed before operation
• Suitable for standard environments: Ensures stable performance under normal operating temperatures ranging from +5 to +40 °C

3. TECHNICAL SPECIFICATIONS

• Maximum load capacity: 50 kg/m
• Conveyor speed: 0.1 to 2.0 m/s
• Incline/decline capability: Not suitable
• Operating ambient temperature: +5 to +40 °C
• Accumulation mode: Not supported
• Drive medium: Flat belt
• b Available in 3D PDF, 2D DWG, IGES, STEP, and SAT formats

4. CONCLUSION

The RM 8220 is an optimal choice for systems requiring smooth and stable product direction changes. With a simple, efficient design and easy installation, it effectively meets material handling demands in modern production lines, enhancing productivity and operational flexibility for businesses.
