Roller Diverter Conveyor – PM 9732

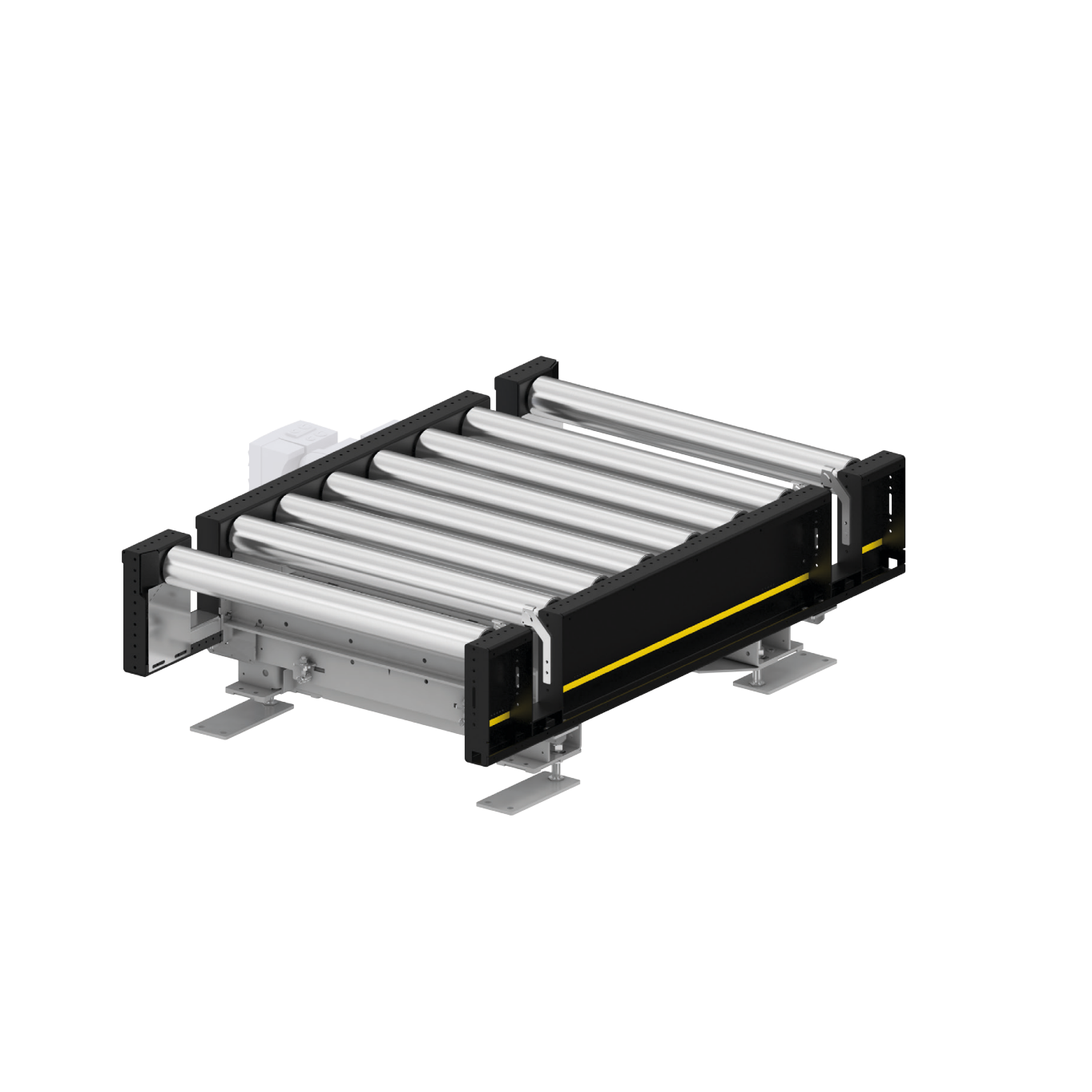

The PM 9732 roller diverter conveyor is used to divert pallets by 90° during horizontal transportation of both loaded and empty pallets.
The roller conveyor drive can be installed on either the right or left side of the conveyor line, depending on the direction of travel. Driving force is transmitted via a precision 5/8″ × 3/8″ roller chain.
GENERAL INFORMATION
The PM 9732 roller diverter transfer unit is used to divert pallets by 90° during horizontal transportation.
The roller conveyor drive can be installed on either the right or left side of the conveyor line, depending on the direction of travel. The steel frame serves as a lifting structure for the eccentric lifting cams, which are supported by bearings. Height-adjustable support legs allow flexible installation and compatibility with various floor types.
TECHNICAL SPECIFICATIONS
- Maximum load capacity: 1,500 kg
- Conveyor speed: 0.1 to 0.5 m/s
- Maximum lifting stroke: 60 mm
- Number of stop positions: 3
- Ambient temperature: +5 °C to +45 °C (non-condensing), optional for cold storage environments
- Incline/gradient: Not suitable
- Number of chain grooves:
-
- 2 grooves (with CS = 950 mm)
- 2 or 3 grooves (with CS = 1,075 mm)
Roller Conveyor Drive
- Rated voltage: 400 V
- Motor type: Gear motor
- Power output: 0.37 kW
- Roller chain: 5/8″ × 3/8″
Lifting Drive
- Rated voltage: 400 V
- Motor type: Gear motor
- Power output: 0.37 to 0.55 kW
- Roller chain: 3/4″ × 7/16″
Rollers
- Roller type: Interroll Series 3950
- Roller wall thickness: 3 mm
- Roller diameter: 89 mm
- Material: Galvanized steel
Frame (Profile)
- Dimensions: 283 × 65 (69) × 4 mm
- Finish: Powder-coated, primary color RAL 9005 (black) with accent color RAL 1023 (yellow)
- Material: Steel
MODEL DIMENSIONS
- Conveyor width (CW): 860, 1,060, 1,295 mm
- Model width (TW): 1,000, 1,200, 1,435 mm
- Chain spacing (CS): 950, 1,075 mm
- Conveyor height (TOR): 500 to 1,200 mm
- Model length (ML): 1,500 mm
