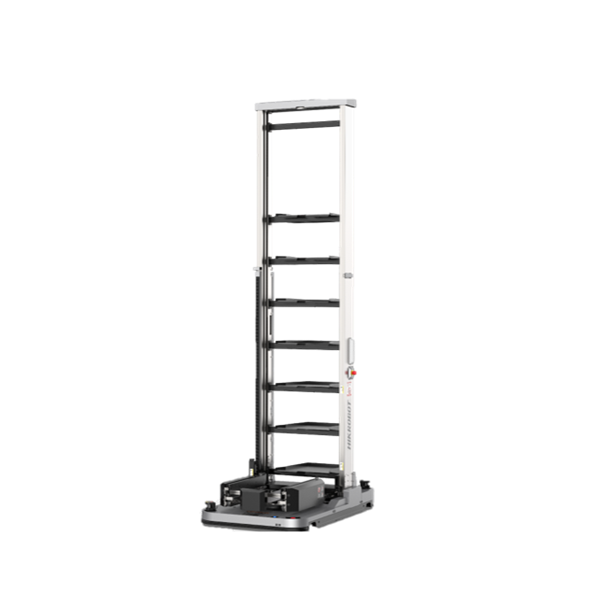

TP5-50DCH – Autonomous Box Transport Robot
The TP5-50DCH autonomous vehicle belongs to the autonomous box transport robot series, featuring a compact and flexible design that adapts easily to various operating environments.
It is capable of picking up goods at heights ranging from 300 mm to 6,000 mm, meeting diverse requirements in warehouses and production lines.
GENERAL INFORMATION
The TP5-50DCH autonomous vehicle belongs to the autonomous bin transport robot series, featuring a compact and flexible design suitable for a wide range of operating environments. It can pick up goods at heights from 300 mm to 6,000 mm, meeting diverse demands in automated warehouses and production lines.
TECHNICAL SPECIFICATIONS OF TP5-50DCH
|
Model |
TP5-50DCH |
| Dimensions (L × W × H) (mm) | 1730 × 950 × 6330 |
| Weight (including battery) (kg) | 640 |
| Load Capacity (kg) | 300 |
| Actuator load (kg) | 50 |
| Actuation Mechanism | Clamp: single deep / double deep |
| Load Pickup Height (mm) | 300 ~ 6000 |
| Compatible Cargo Dimensions (L × W × H) (mm) | 600 × 400 × 300 (Customizable) |
| Rated Travel Speed (mm/s) | 1800 |
| Stopping Accuracy During Travel (mm / °) | ±10 / ±1 |
| Stopping Accuracy During Lifting/Lowering (mm) | ±2 |
| Aisle Width (mm) | 1100 |
| Turning Diameter (mm) | 1865 |
| Operating Time (h) | 8 |
| Charging Time (h) | ≤ 1.5 |
| Hệ thống dẫn động | Differential drive |
| Human–Machine Interface (HMI) | Touchscreen Display |
| Navigation Mode | 2D Barcode / L-SLAM / V-SLAM |
