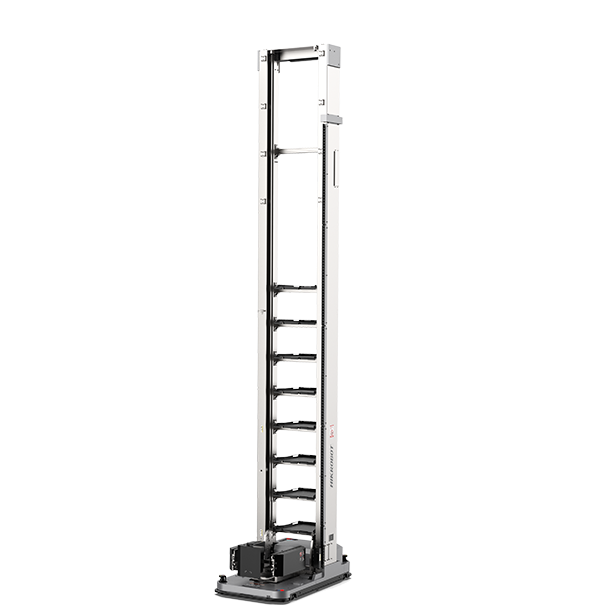

TP5-50DCH(T) – Autonomous Box Transport Vehicle
The TP5-50DCH(T) autonomous vehicle belongs to the autonomous box transport robot series, featuring a compact and highly flexible design that adapts easily to various operating environments.
It supports picking heights from 400 mm up to 10,240 mm, meeting diverse requirements in warehouses and production lines with high efficiency and reliability.
The TP5-50DCH(T) autonomous vehicle is part of the autonomous box transport robot range, designed with a compact footprint and high flexibility, making it suitable for various operating environments. It supports picking heights from 400 mm to 10,240 mm, effectively meeting diverse requirements in storage warehouses and production lines.
TECHNICAL SPECIFICATIONS OF TP5-50DCH(T)
|
Model |
TP5-50DCH(T) |
| Dimensions (L × W × H) (mm) | 1880 × 950 × 6560 |
| Weight (Including Battery) (kg) | 1150 |
| Load Capacity (kg) | 300 |
| Actuator Load Capacity (kg) | 50 |
| Actuation Mechanism | Clamp: single deep / double deep |
| Picking Height (mm) | 400 ~ 10240 |
| Compatible Cargo Dimensions (L × W × H) (mm) | 600 × 400 × 300 (Customizable) |
| Travel Speed (mm/s) | 1800 |
| Positioning Accuracy During Travel (mm / °) | ±10 / ±1 |
| Positioning Accuracy During Lifting/Lowering (mm) | ±2 |
| Aisle Width (mm) | 1100 |
| Turning Radius (mm) | 1975 |
| Operating Time (h) | 8 |
| Charging Time (h) | ≤ 2 |
| Drive System | Differential drive |
| Human–Machine Interface (HMI) | Touchscreen Display |
| Navigation Mode | 2D Barcode / L-SLAM / V-SLAM |
