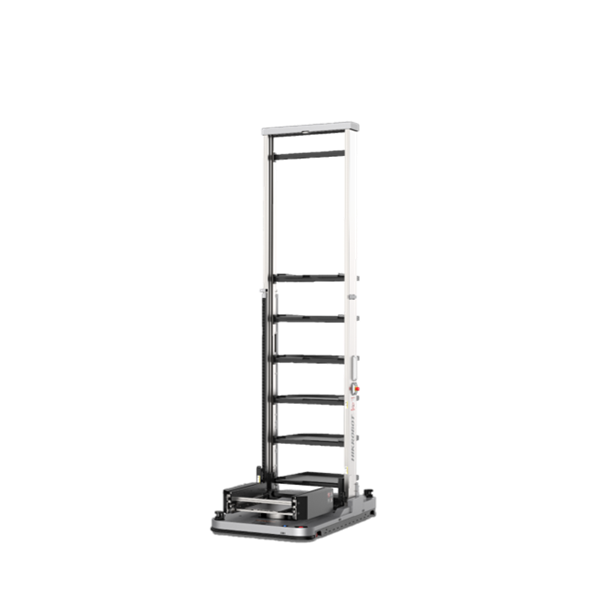

TP5-50DCP / TP5-50DCP(T) – Autonomous Box Transport Vehicle
The TP5-50DCP / TP5-50DCP(T) autonomous vehicle is part of the autonomous box transport robot series, featuring a compact and flexible design that fits various operating environments.
It supports picking heights from 300 mm up to 10,240 mm, depending on the model, meeting diverse requirements in warehouses and production lines.
The TP5-50DCP / TP5-50DCP(T) autonomous vehicle is part of the autonomous bin transport robot range, designed with a compact footprint and high flexibility, making it ideal for various operating environments. The vehicle supports picking heights from 300 mm to 10,240 mm, depending on the configuration, effectively meeting diverse demands in warehouses and production lines.
TECHNICAL SPECIFICATIONS OF TP5-50DCP / TP5-50DCP(T)
|
Model |
TP5-50DCP |
TP5-50DCP(T) |
| Dimensions (L × W × H) (mm) | 1850 × 1050 × 6355 | 1950 × 1050 × 6560 |
| Weight (including battery) (kg) | 680 | 1150 |
| Load Capacity (kg) | 300 | 300 |
| Gripper Load Capacity (kg) | 50 | 50 |
| Actuation Mechanism | Clamp: Single-Deep / Double-Deep | Clamp: Single-Deep / Double-Deep |
| Picking Height (mm) | 300 ~ 6000 | 400 ~ 10240 |
| Compatible Cargo Dimensions (mm) | 600 × 400 × 300 (Customizable) | 600 × 400 × 300 (Customizable) |
| Rated Travel Speed (mm/s) | 1800 | 1500 |
| Stopping Accuracy (Travel) (mm / °) | ±10 / ±1 | ±10 / ±1 |
| Stopping Accuracy (Lifting/Lowering) (mm) | ±2 | ±2 |
| Aisle Width (mm) | 1200 | 1200 |
| Turning Radius (mm) | 1980 | 2070 |
| Operating Time (h) | 8 | 8 |
| Charging Time (h) | ≤ 2 | ≤ 2 |
| Drive Method | Differential Drive | Differential Drive |
| Human–Machine Interface (HMI) | Touchscreen Display | Touchscreen Display |
| Navigation Mode | 2D barcode / L-SLAM / V-SLAM | 2D barcode / L-SLAM / V-SLAM |
