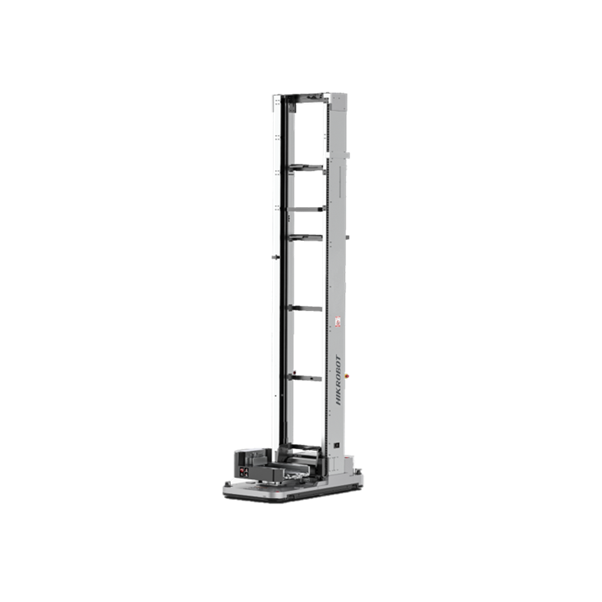

TP5-50DGH(DT) – Autonomous Box Transport AGV
The TP5-50DGH(DT) is an autonomous tote transport robot featuring a compact and flexible design, making it suitable for a wide range of operating environments.
It is capable of picking and handling goods at heights ranging from 400 mm to 10,000 mm, meeting diverse requirements in warehouses and production lines.
The TP5-50DGH(DT) is an autonomous tote-handling robot designed with a compact and flexible structure, making it suitable for a wide range of operational environments. It is capable of picking goods at heights ranging from 400 mm to 10,000 mm, meeting diverse requirements in warehouses and production lines.
TECHNICAL SPECIFICATIONS OF TP5-50DGH(DT)
| Model | TP5-50DGH(DT) |
| Dimensions (L × W × H) (mm) | 1880 × 950 × 6550 |
| Weight (including battery) (kg) | 1150 |
| Load Capacity (kg) | 300 |
| Actuator Load Capacity (kg) | 30 |
| Actuation Mechanism | Grabbing and double deep |
| Picking Height (mm) | 400 ~ 10000 |
| Compatible Cargo Dimensions (mm) | 600 × 400 × 300 (Customizable) |
| Travel Speed (mm/s) | 1500 |
| Positioning Accuracy During Movement (mm / °) | ±10 / ±1 |
| Positioning Accuracy During Lifting/Lowering (mm) | ±2 |
| Aisle Width (mm) | 1100 |
| Turning Radius (mm) | 1975 |
| Operating Time (h) | 8 |
| Charging Time (h) | ≤ 2 |
| Drive System | Differential drive |
| Human–Machine Interface (HMI) | Touchscreen Display |
| Navigation Mode | 2D Barcode / L-SLAM / V-SLAM |
