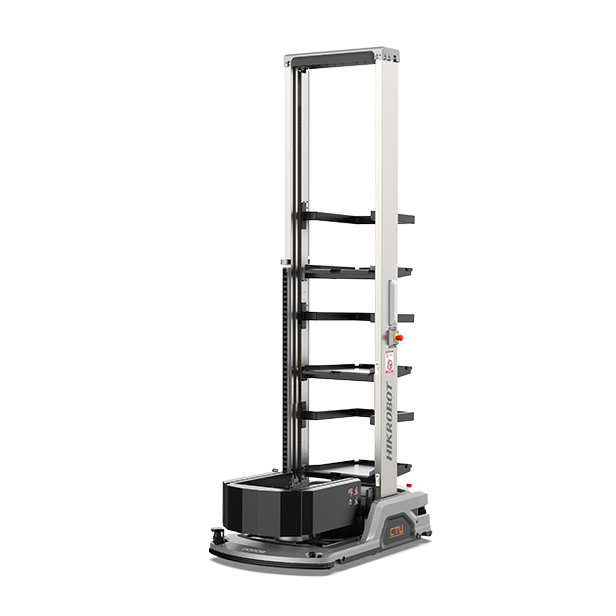

TP5-50DM-C – Autonomous Box Transport
The TP5-50DM-C autonomous vehicle belongs to the autonomous bin transport robot series, featuring a compact and flexible design suitable for a wide range of operating environments.
It is capable of picking up goods at heights ranging from 370 mm to 3,000 mm, meeting diverse requirements in warehouses and production lines.
The TP5-50DM-C is an autonomous box transport robot designed with a compact and highly flexible structure, making it suitable for a wide range of operating environments. It is capable of picking loads at heights ranging from 370 mm to 3,000 mm, meeting diverse requirements across warehouses and production lines.
TECHNICAL SPECIFICATIONS OF TP5-50DM-C
| Model | TP5-50DM-C |
| Dimensions (L × W × H) (mm) | 1600 × 900 × 3370 |
| Weight (Including Battery) (kg) | 600 |
| Load Capacity (kg) | 250 |
| Actuator load (kg) | 50 |
| Actuation Mechanism | Roller + Clamp |
| Pickup Height (mm) | 370 ~ 3000 |
| Compatible Cargo Dimensions (mm) | 400 × 380 × 565 (Customizable) |
| Travel Speed (mm/s) | 1600 |
| Stopping Accuracy During Travel (mm / °) | ±10 / ±1 |
| Stopping Accuracy During Lifting/Lowering (mm) | ±2 |
| Aisle Width (mm) | 1050 |
| Turning Diameter (mm) | 1600 |
| Operating Time (h) | 8 |
| Charging Time (h) | ≤ 1.5 |
| Drive System | Differential drive |
| Human–Machine Interface (HMI) | Touchscreen Display |
| Navigation Mode | 2D Barcode / L-SLAM / V-SLAM |
