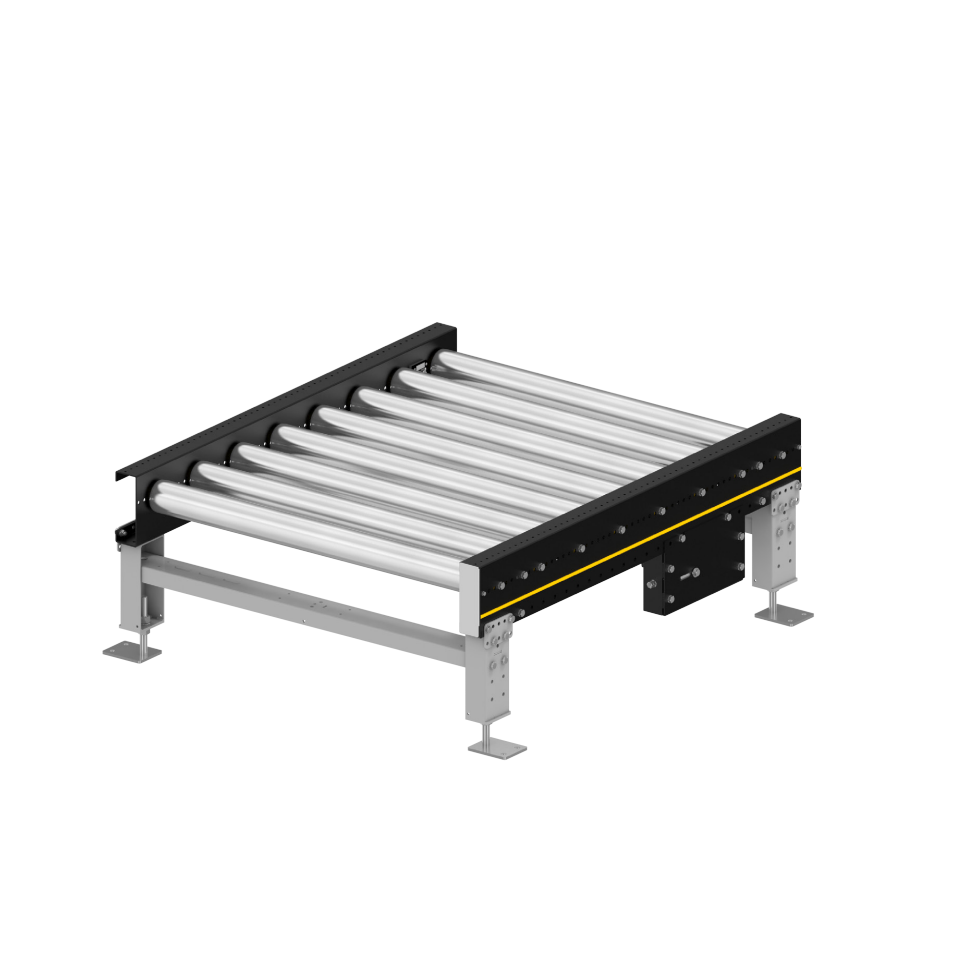

Roller Conveyor – PM 9710
The PM 9710 roller conveyor is suitable for horizontal transportation of both loaded and empty pallets. Thanks to the tangential drive principle and frame design, the rollers can be repositioned quickly and easily.
The chain tensioning unit is mounted externally, allowing precise and easy adjustment of the roller chain tension. At the same time, the robust frame also functions as a side guide rail.
GENERAL INFORMATION
The PM 9710 roller conveyor is suitable for horizontal transportation of both loaded and empty pallets. Thanks to the tangential drive principle and frame design, the rollers can be repositioned quickly and easily.
The chain tensioning unit is conveniently positioned for tension adjustment, routine maintenance, and servicing. The PM 9710 features a robust frame that also functions as a side guide rail.
The drive unit can be installed on the right side or optionally on the left, depending on the direction of travel. Height-adjustable support legs allow installation on various floor types.
TECHNICAL SPECIFICATIONS
- Maximum load capacity: 1,250 kg/m or 3,000 kg per drive unit
- Conveyor speed: 0.1 to 0.5 m/s
- Ambient temperature: +5 °C to +45 °C (non-condensing), optional for cold storage environments upon request
- Incline/gradient: Up to 4% (applicable only with specific motor types)
Drive System
- Rated voltage: 400 V
- Motor type: Gear motor
- Power output: 0.09 to 0.75 kW
- Roller chain: 5/8″ × 3/8″
Rollers
- Roller type: Interroll Series 3950
- Roller diameter: 89 mm
- Drive sprocket: Z18
- Roller tube wall thickness: 3 mm
- Material: Galvanized steel
Support Frame
- Mounting hole pitch: 25 mm
- Dimensions: 200 × 70 × 4 mm
- Finish: Powder-coated, primary color RAL 9005 (black) with accent color RAL 1023 (yellow)
- Material: Steel
MODEL DIMENSIONS
- Conveyor width (CW): 860, 1,060, 1,295 mm
- Model width (TW): 1,000, 1,200, 1,435 mm
- Conveyor height (TOR): 350 to 1,200 mm
- Roller pitch (P): 175 to 225 mm
- Model length (ML): 850 to 5,750 mm
