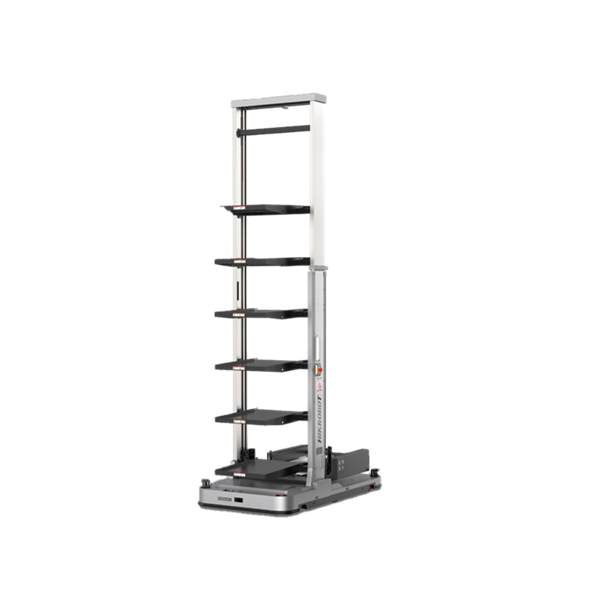

TP5-50DCW / TP5-50DCW(T) – Autonomous Box Transport Vehicle
The TP5-50DCW / TP5-50DCW(T) autonomous vehicle belongs to the autonomous bin transport robot series, featuring a compact and flexible design that adapts seamlessly to various operating environments.
It is capable of picking goods at heights ranging from 300 mm to 10,240 mm, depending on the configuration, meeting diverse requirements in warehouses and production lines.
The TP5-50DCW / TP5-50DCW(T) autonomous vehicle is part of the autonomous bin transport robot lineup, featuring a compact and highly flexible design that fits a wide range of operating environments. It supports picking heights from 300 mm up to 10,240 mm, depending on the model, effectively meeting diverse needs across warehouses and production lines.
TECHNICAL SPECIFICATIONS OF TP5-50DCW / TP5-50DCW(T)
| Model | TP5-50DCW | TP5-50DCW(T) |
| Dimensions (L × W × H) (mm) | 2050 × 1150 × 6375 | 2240 × 1150 × 6560 |
| Weight (including battery) (kg) | 700 | 1200 |
| Load Capacity (kg) | 300 | 300 |
| Gripper Load Capacity (kg) | 50 | 50 |
| Actuation Mechanism | Clamp, single deep | Clamp, single deep |
| Picking Height (mm) | 300 ~ 6000 | 400 ~ 10240 |
| Compatible Cargo Dimensions (mm) | 800 × 600 × 300 (Customizable) | 800 × 600 × 300 (Customizable) |
| Travel Speed (mm/s) | 1800 | 1500 |
| Stopping Accuracy (Travel) (mm / °) | ±10 / ±1 | ±10 / ±1 |
| Stopping Accuracy (Lifting/Lowering) (mm) | ±2 | ±2 |
| Aisle Width (mm) | 1300 | 1300 |
| Turning Radius (mm) | 2225 | 2400 |
| Operating Time (h) | 8 | 8 |
| Charging Time (h) | ≤ 2 | ≤ 2 |
| Drive Method | Differential Drive | Differential Drive |
| Giao diện người – máy | Touchscreen Display | Touchscreen Display |
| Chế độ điều hướng | 2D Barcode / L-SLAM / V-SLAM | 2D Barcode / L-SLAM / V-SLAM |
